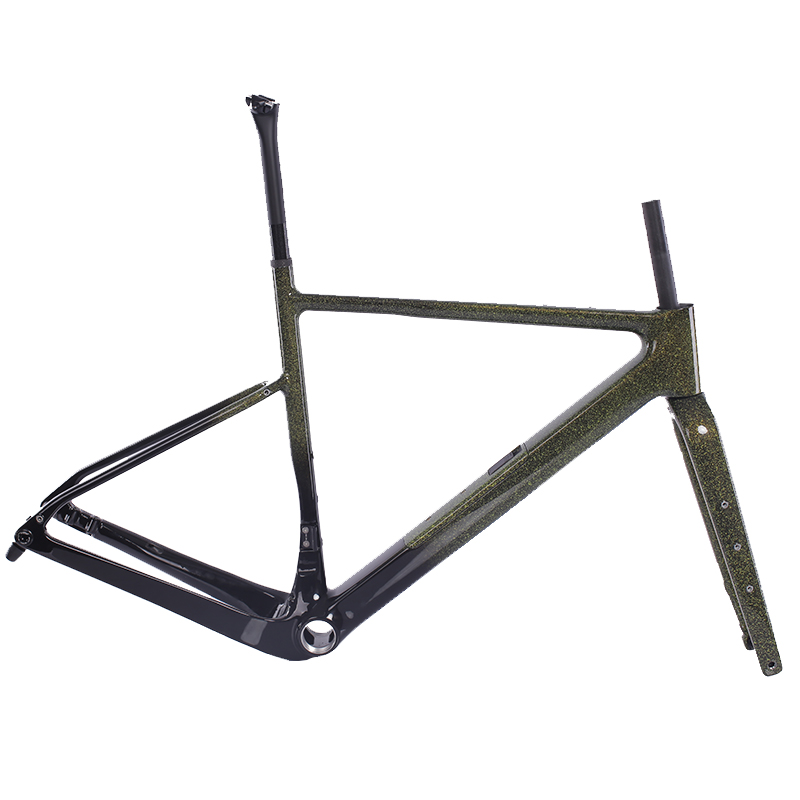

2024 New Designed UDH Hanger Full Carbon Fiber Gravel Bike Frame FM296
Key Features:
- FULLY INTERNAL CABLE ROUTING
- T47
- FLAT MOUNT 140/160MM DISC BRAKE
- HEADTUBE: 1-/2" (UP AND DOWN)
- FENDER MOUNT
- UDH HANGER
- STORAGE ROOM

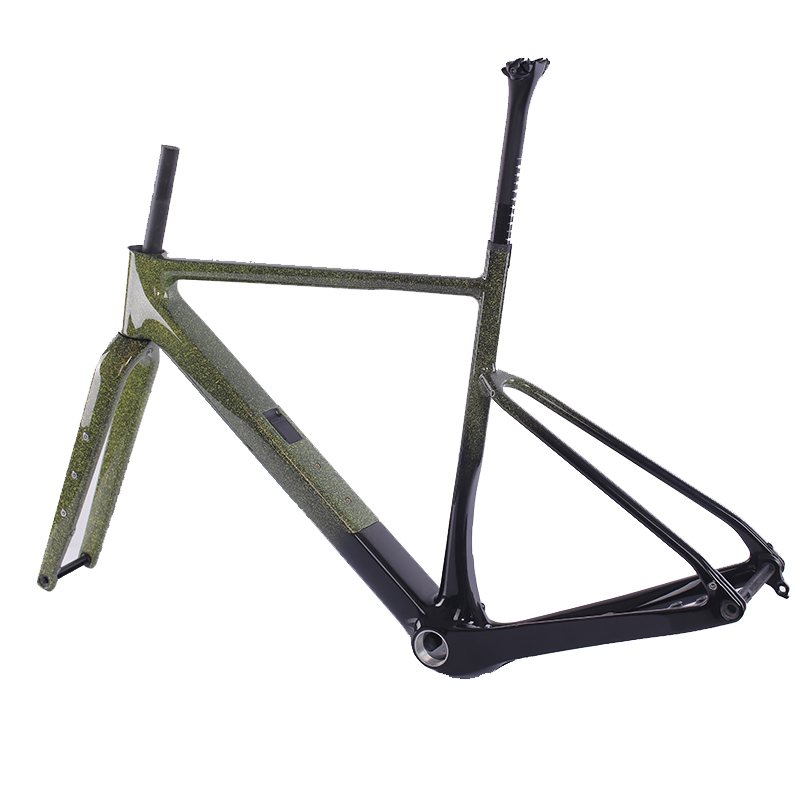

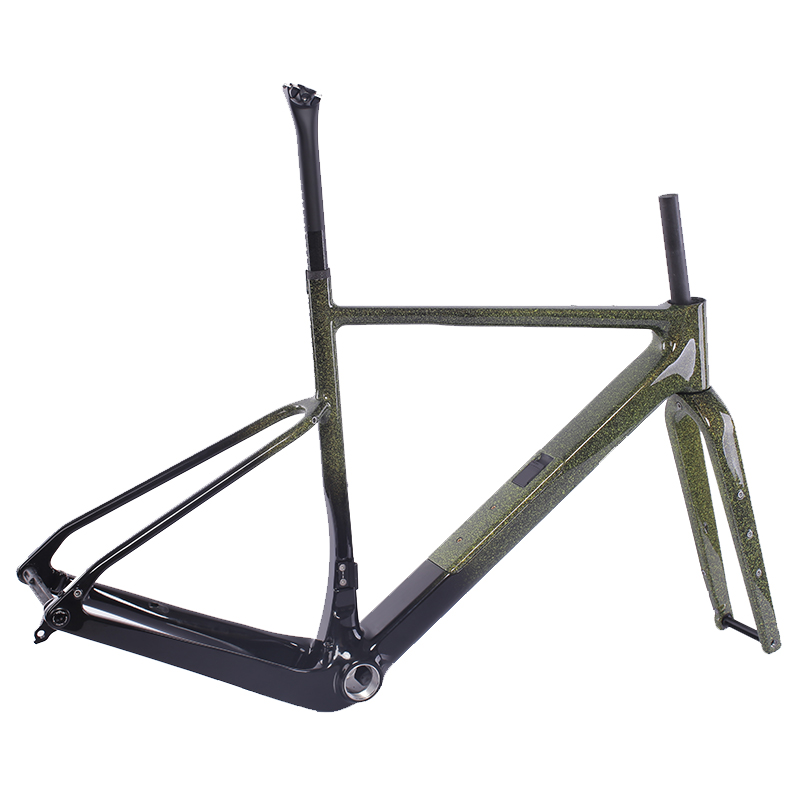

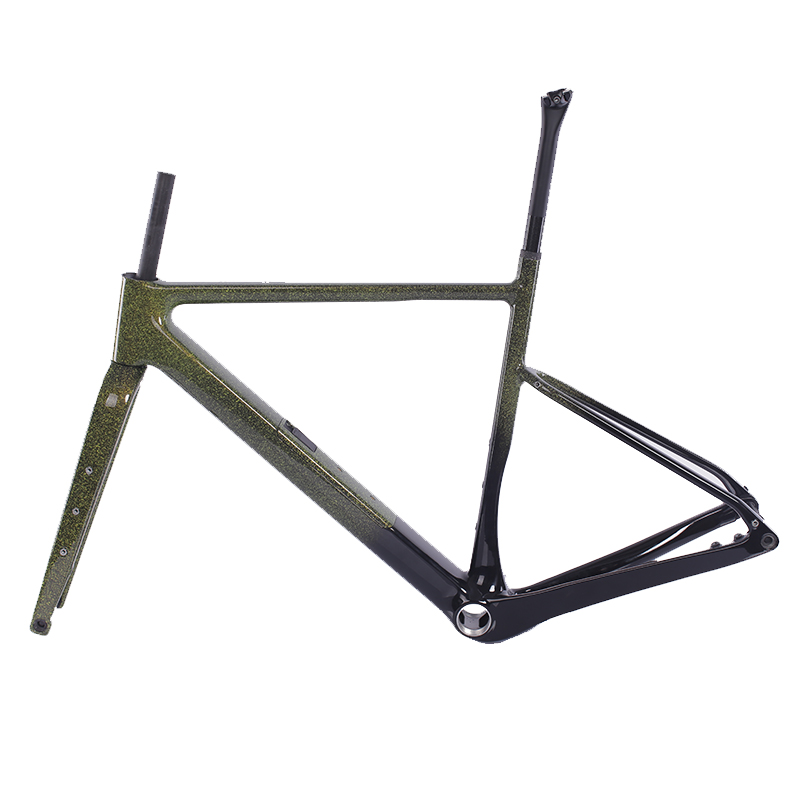

Frame Detail
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 20 sets
Sample: Provided

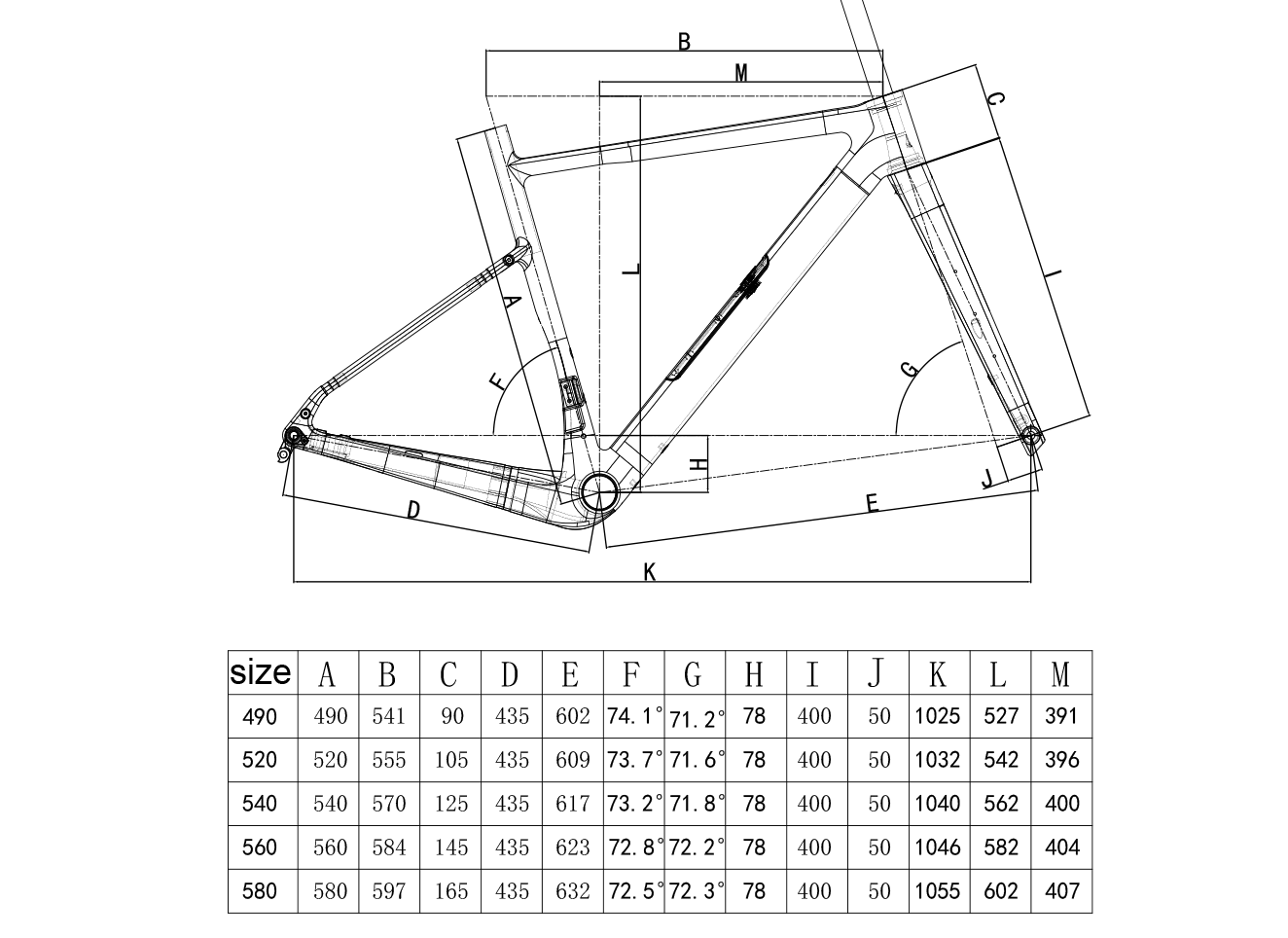

Frame Data Sheet
Material: 100% Toray T800/T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size：49/52/54/56/58cm
Frame Weight: 1150+-30g (52cm)
Fork Weight: 458/+-15g
Tire Size : 700*50C / 27.5*2.1"
Rear Spacing : 12*142mm
Fork Spacing : 12*100mm
Seatpost : 27.2mm
Hanger: UDH
Storage Room: Yes
