New Design Flip Chip Offset Max 700*50mm Tire T47 Carbon Gravel Bike Frame FM306
Key Features:
- FLIP CHIP FORK HANGER 45/50MM
- T47 BRACKET 85.5MM
- FRAME FORK FLAT MOUNT 140/160MM
- HEADTUBE: IS52/52
- 395MM A-C FORK LENGTH
- FENDER MOUNT
- UDH HANGER

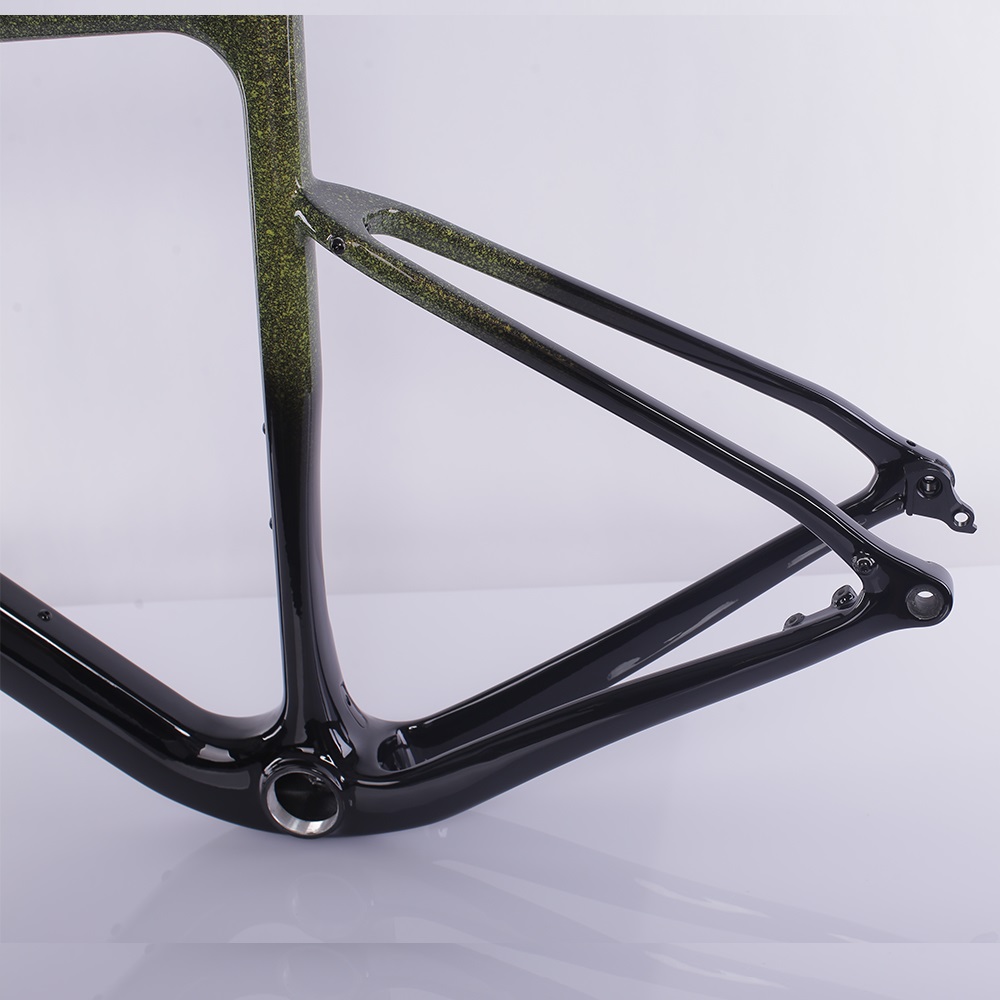

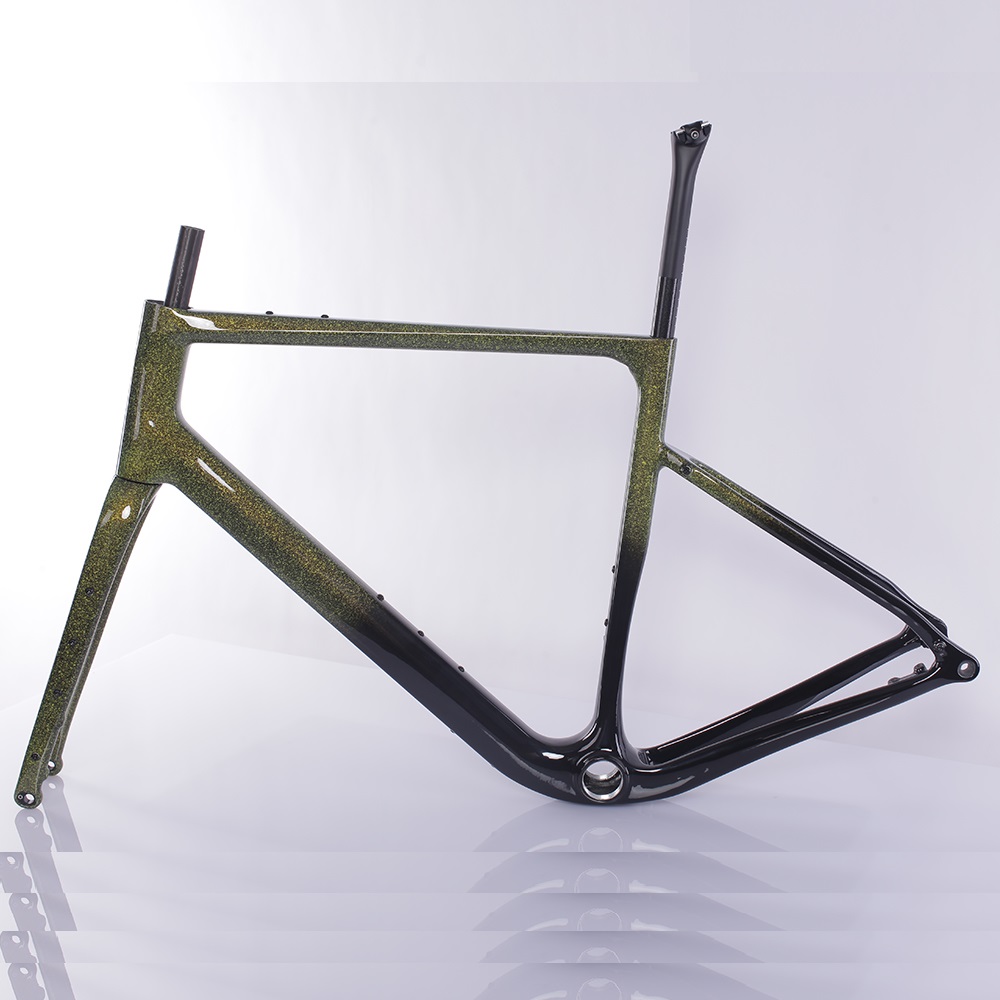

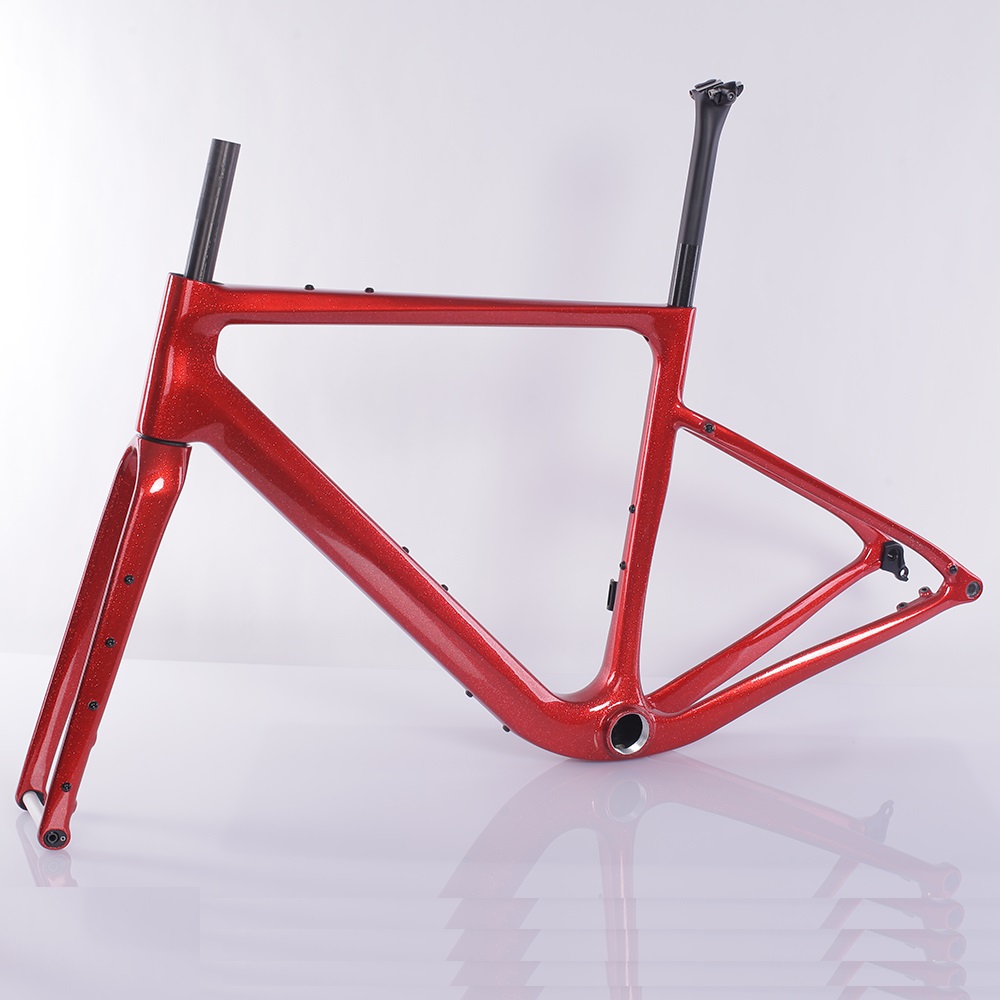

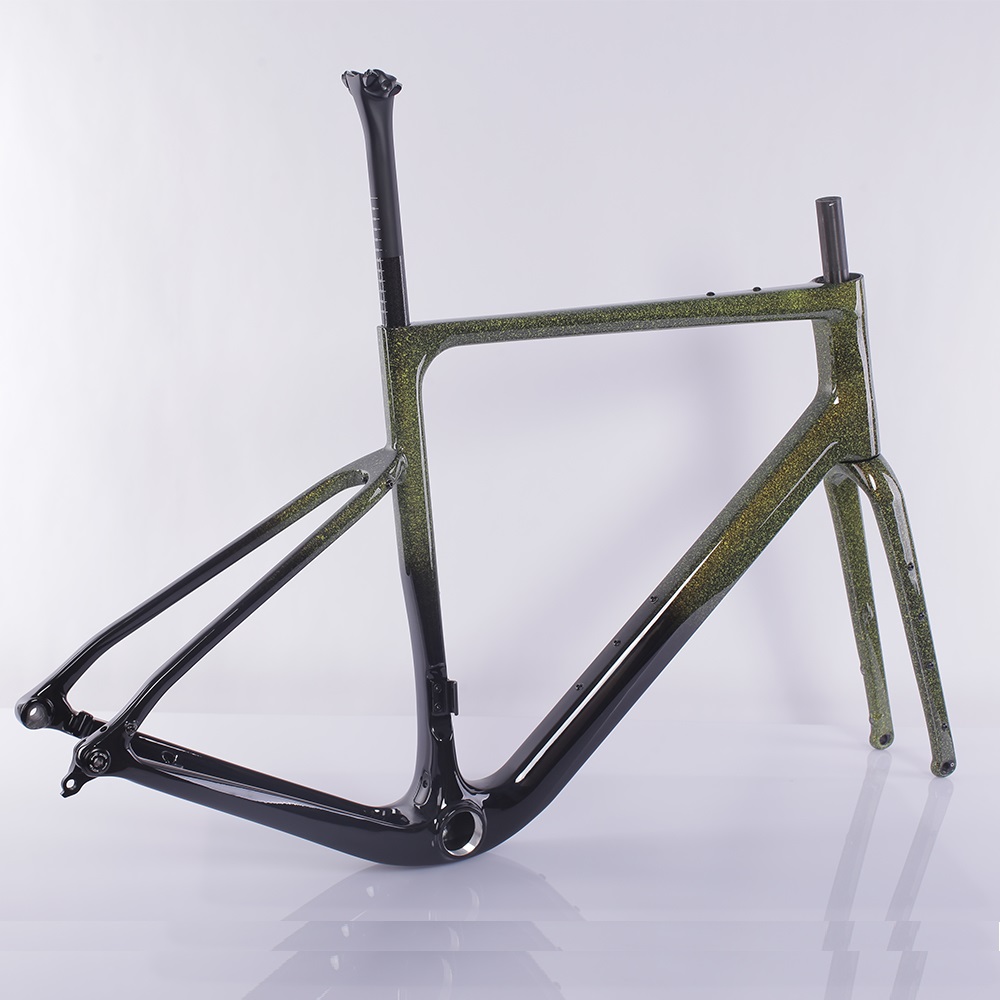

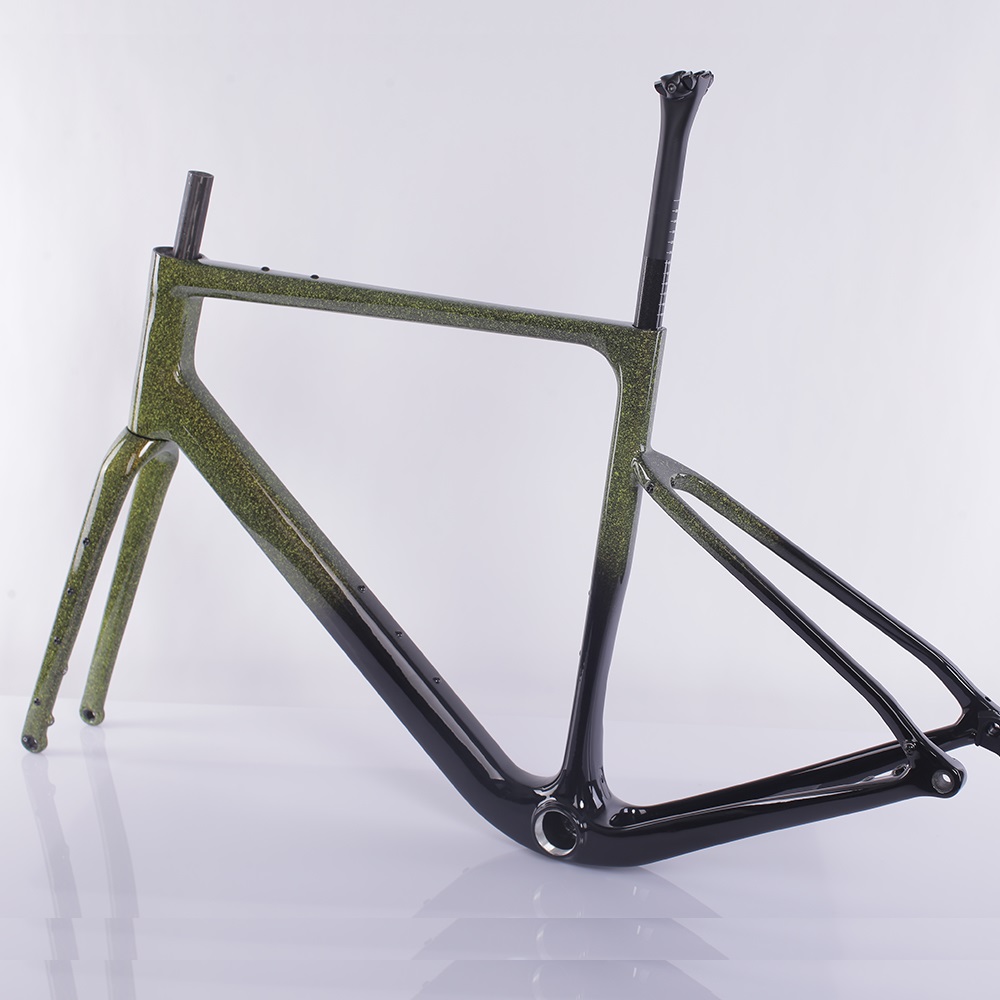

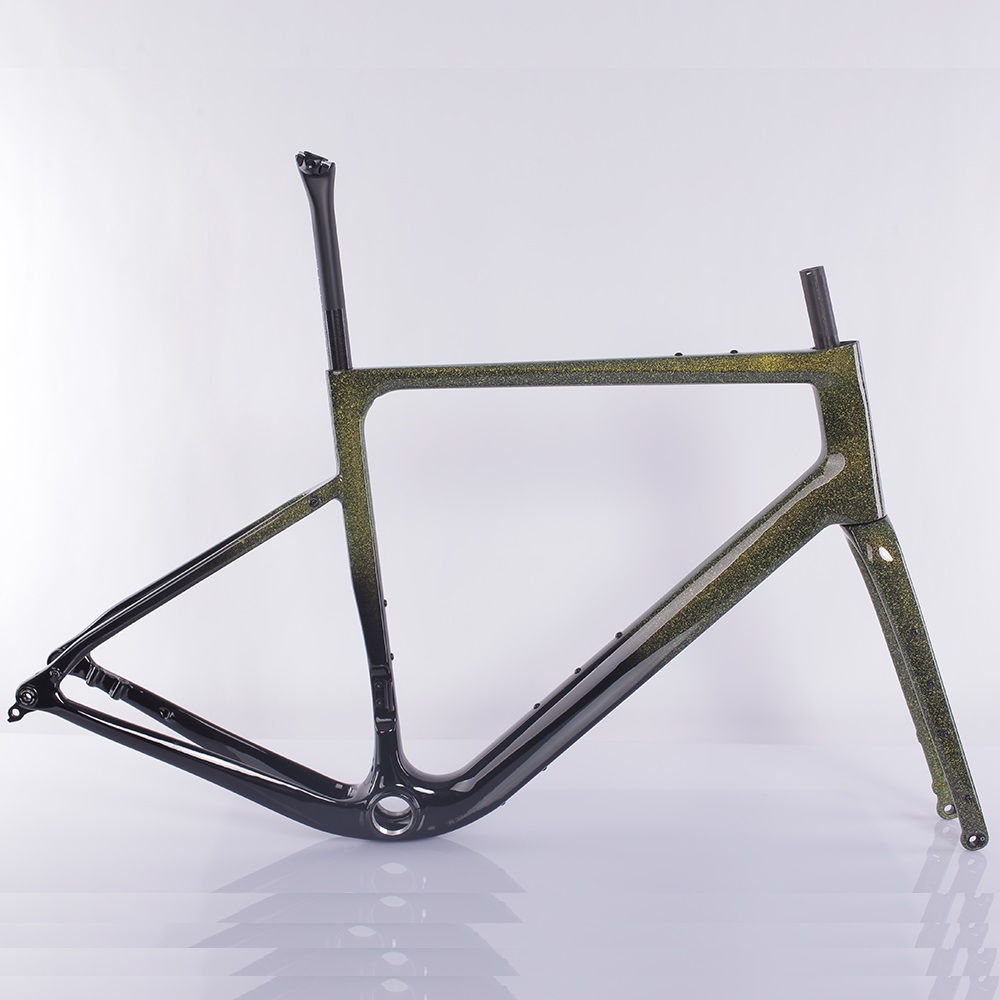

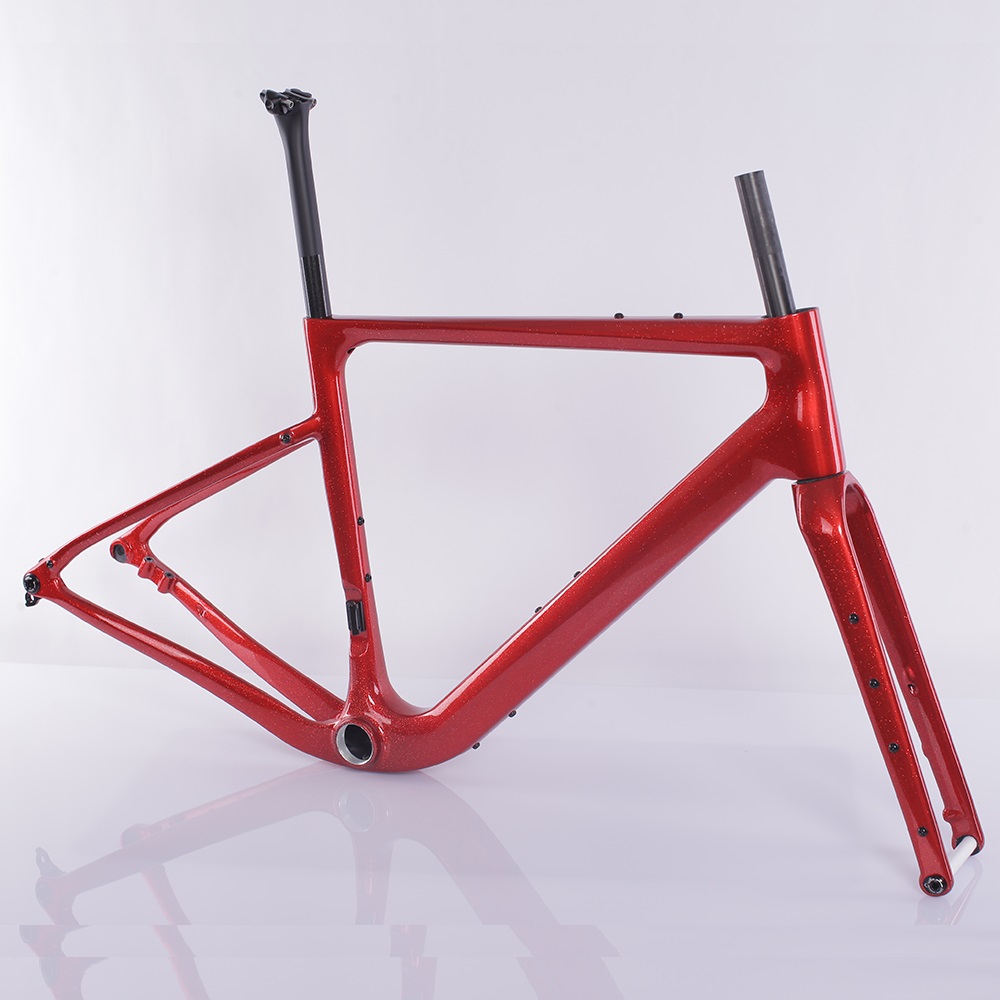

Frame Detail
Factory Capacity
Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 50 sets
Sample: Provided

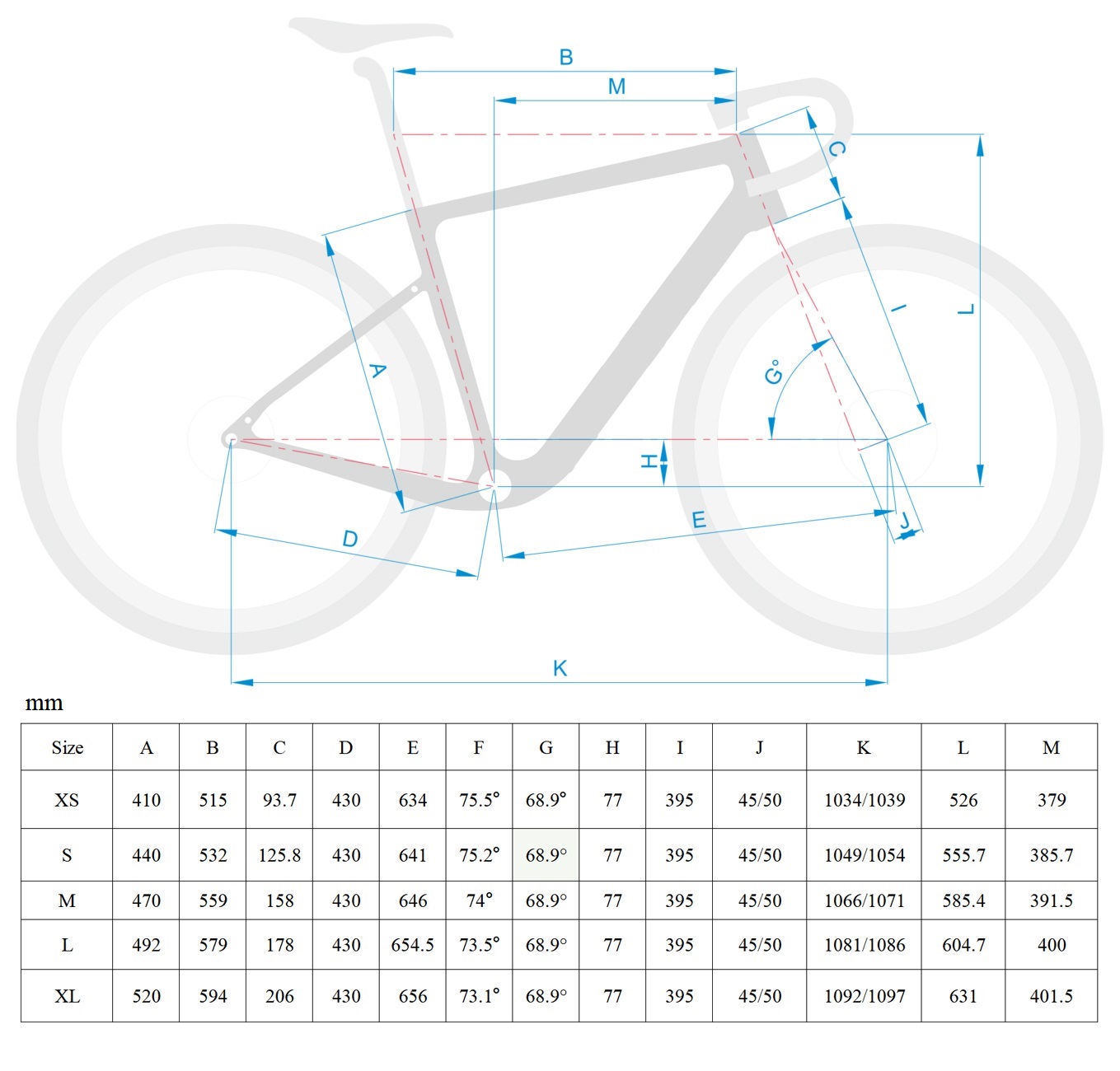

Frame Data Sheet
Material: 100% Toray T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Frame Weight: 980kg+-30g(XS, UD Matt)
Fork Weight: 410g+-15g(UD Matt)
Frame: 12*142mm , UDH Hanger
Fork: 12*100mm, 45/50mm Rake With Flip Chip, 395mm A-C
Max Tire: 650B*2.1''/700C*50mm
Size: XS/S/M/L/XL
Seatpost: 27.2mm
Get in touch with us
Please fullfil the following contact form about the model you like or your new project, so we can send you more detail information about the products or your projects. Thanks for your support.
