Plan the Ebike Frame Around Motor and Battery Integration

Motor generation, mounting points, battery dimensions and wiring determine which platform to consider. A matching brand name or motor power label alone does not establish compatibility.

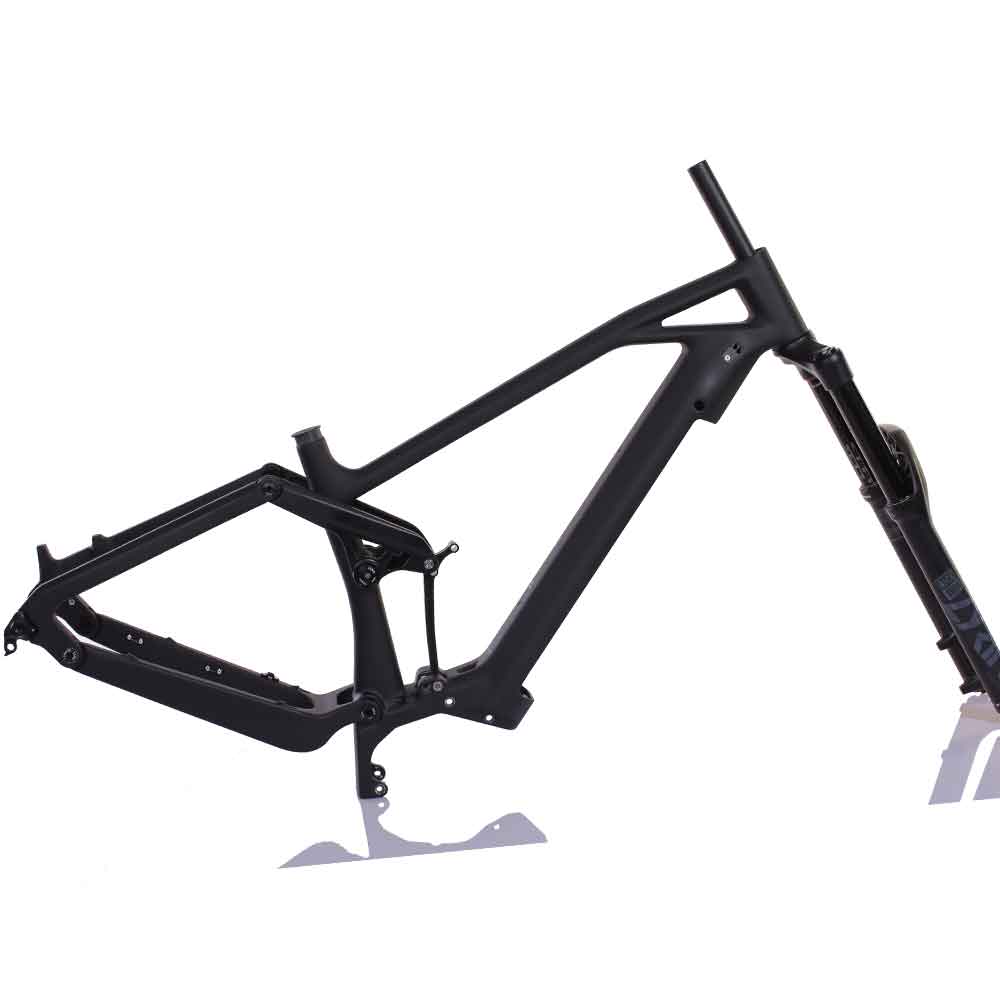

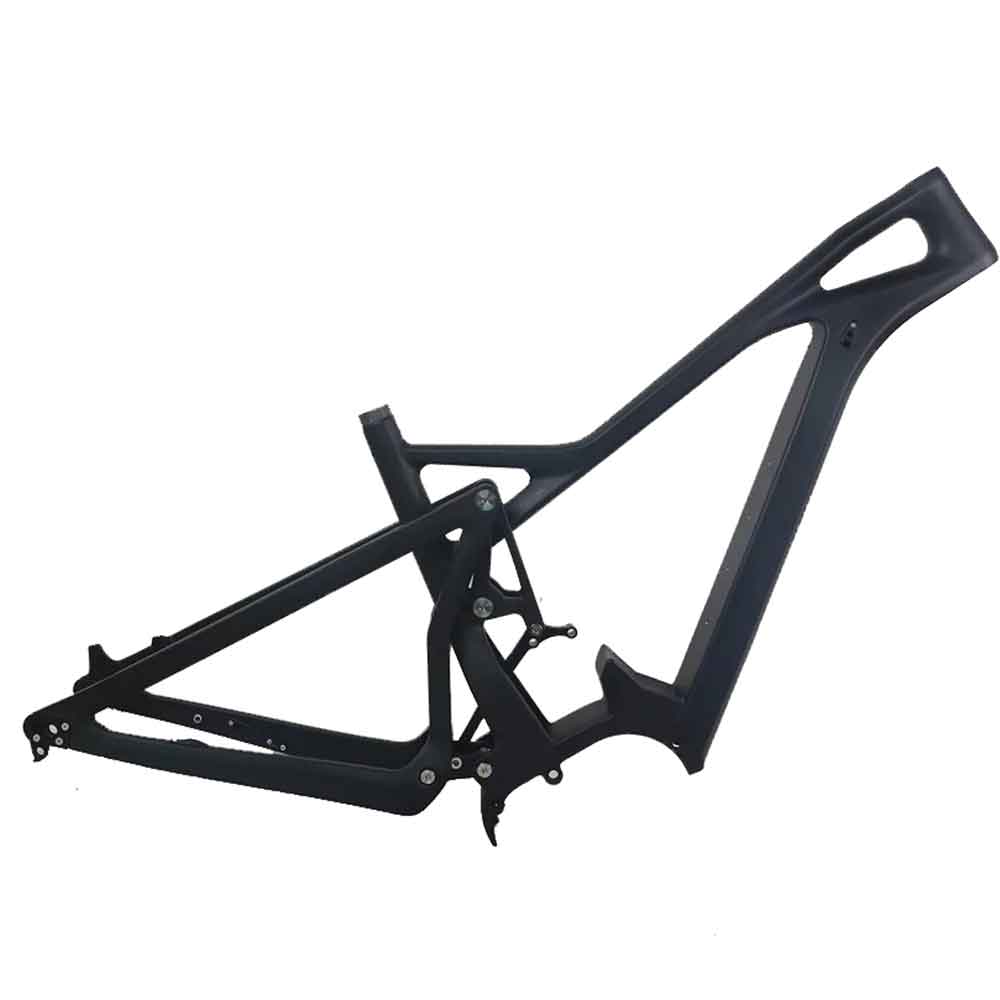

Suspension e-MTB: FM368 / FM388

FM368 lists Bosch Gen4 CX; FM388 lists Bafang M620. Compare the published suspension and battery arrangements as separate systems, not interchangeable frames.

Hub-motor road: FM406

FM406 lists FSA HM 1.0, an integrated 250 Wh battery and a 9 × 135 mm rear interface. Check the compatible rear wheel and motor hardware.

Compare the published motor and battery configurations

These are platform references, not confirmation that the motor, battery or suspension components are included in the frame price. Verify exact part numbers and supply scope.

Model Motor system Battery Travel / use Interface check
FM368 Bosch Gen4 CX PowerTube 625 Wh, horizontal 200 mm downhill 230 × 65 mm shock; mounting hardware
FM388 Bafang M620 External 52 V / 21 Ah configuration 180 mm e-MTB 230 × 65 mm shock; pack dimensions
FM406 FSA HM 1.0 hub motor Integrated 250 Wh battery Road, hub-motor 9 × 135 mm rear / 12 × 100 mm front

Check the whole electric system before choosing a frame

Start with a parts list and installation plan, then compare geometry and the frame package.

Do not interchange motor families by appearance

FM368 and FM388 list different mid-drive systems; FM406 uses a hub-motor configuration. Mounting geometry, wiring and drivetrain arrangements differ. Identify the exact motor generation and part number before deciding which platform to order.

If you already own a system, provide photos of the mounting points, connectors and battery case as well as part numbers. A battery that fits a downtube in a photograph may still differ in rail, connector or removal clearance.

Match battery access, suspension and wheels

For FM368 and FM388, confirm the shock hardware and fork configuration alongside the published shock dimensions.

FM406 lists different front and rear interfaces: 12 × 100 mm at the front and 9 × 135 mm at the rear. Do not assume that a conventional 12 × 142 mm rear thru-axle wheel can be transferred. Confirm the motor wheel, axle hardware and brakes together.

Price the frame and electrical package separately

Ask which items are supplied: frame, fork where applicable, motor mounts, battery mounts or covers, wiring guides, headset, axle and rear shock. Motor, battery, charger and controls should be listed separately so that the frame price is not mistaken for a complete electric bicycle.

A frame weight does not include every part of an assembled system and cannot establish riding range. Verify the installation, intended use and destination-market documentation for the complete configuration before buying the remaining parts.

Why Mondince Carbon Ebike Frames

Confirm exact electrical parts

List motor, battery, controller, display, charger and harness part numbers. Physical dimensions and connectors matter alongside the product family.

Plan installation and access

Check battery removal, charging access, routing and mounting hardware for the chosen frame size. Confirm which parts are supplied.

Document the complete build

Separate frame specifications from complete-system requirements. Discuss the destination market and the documentation needed for the actual assembled configuration.

Carbon Ebike Frame FAQ

Are these complete e-bikes or frame-only?

These are carbon ebike frames sold as frame-only platforms. Motor, battery, display, charger and controls are specified separately unless a quote lists them as included. If you need an e-bike frame only, compare the published interface first, then confirm the supply scope.

What information is needed for a carbon ebike frame quote?

Send the target riding type, motor system, battery layout, frame size range, target market, paint/logo needs and estimated quantity. This helps Mondince confirm whether an existing platform or custom OEM solution fits best.

Can one ebike frame fit every motor system?

No. Motor mounting, battery shape, dropout spacing and wiring layout vary by system. Ebike frame selection should start with the motor and battery plan.

Are carbon ebike frames heavier than normal carbon bike frames?

Usually yes, because e-bike frames need reinforced areas for motor, battery and higher riding loads. The goal is not only the lowest weight but a reliable strength-to-weight balance.

Can Mondince support OEM carbon electric bike frame development?

Yes. Mondince can support OEM carbon ebike projects with platform discussion, custom paint, logo, geometry and production planning.

Useful Ebike Frame Links

Certification and Testing

Review testing and certification information before planning market launch.

OEM Carbon Frame Services

Use OEM service details when planning custom carbon ebike frame projects.

Contact Mondince

Send motor, battery and frame requirements for quote discussion.

Planning a Carbon Ebike Frame Project?

Share your motor system, battery layout, market, frame size range and quantity. Mondince can help evaluate whether an existing ebike frame platform or custom OEM project is the better route.
