2025 Ultra Light T1100 Carbon Fiber Road Endurance Bike Frame FM066

Name: 2025 Ultra Light T1100 Carbon Fiber Road Endurance Bike Frame FM066
Brand: Mondince Cycle
SKU: 6
Availability: InStock

0 reviews

Factory Direct Price Contact For Best Price

The 2025 FM066 ultra-light endurance road bike frame is constructed from 100% genuine Toray T1100 carbon fiber. It weighs only 720g±15g (Size S) with a 320g±10g carbon fork, delivering an outstanding stiffness-to-weight ratio for long-distance endurance riding.

This frame supports 700×35C wide tires, features fully internal cable routing, T47 bottom bracket, UDH derailleur hanger, and flat-mount 140/160mm disc brake compatibility. Tested to 1.3×ISO 4210 safety standards and EN certified, it provides reliable strength and durability for daily training and racing. Available in XS–XXL sizes with custom Pantone color options. We offer professional OEM/ODM services for global bike brands.

Weight 650g

Material Toray Grade T1000

Tire Clearance 35mm

Test Standard 1.3 Times Tested

Color Options

Custom Colors Available - Provide YS/Pantone Code

Size Size Guide

XS (49cm)

S (52cm)

M (54cm)

L (56cm)

XL (58cm)

XXL (61cm)

Inquire Now

2-Year Warranty

Free Shipping Worldwide

5-10 Days Delivery

Secure Payment

Payment Methods:

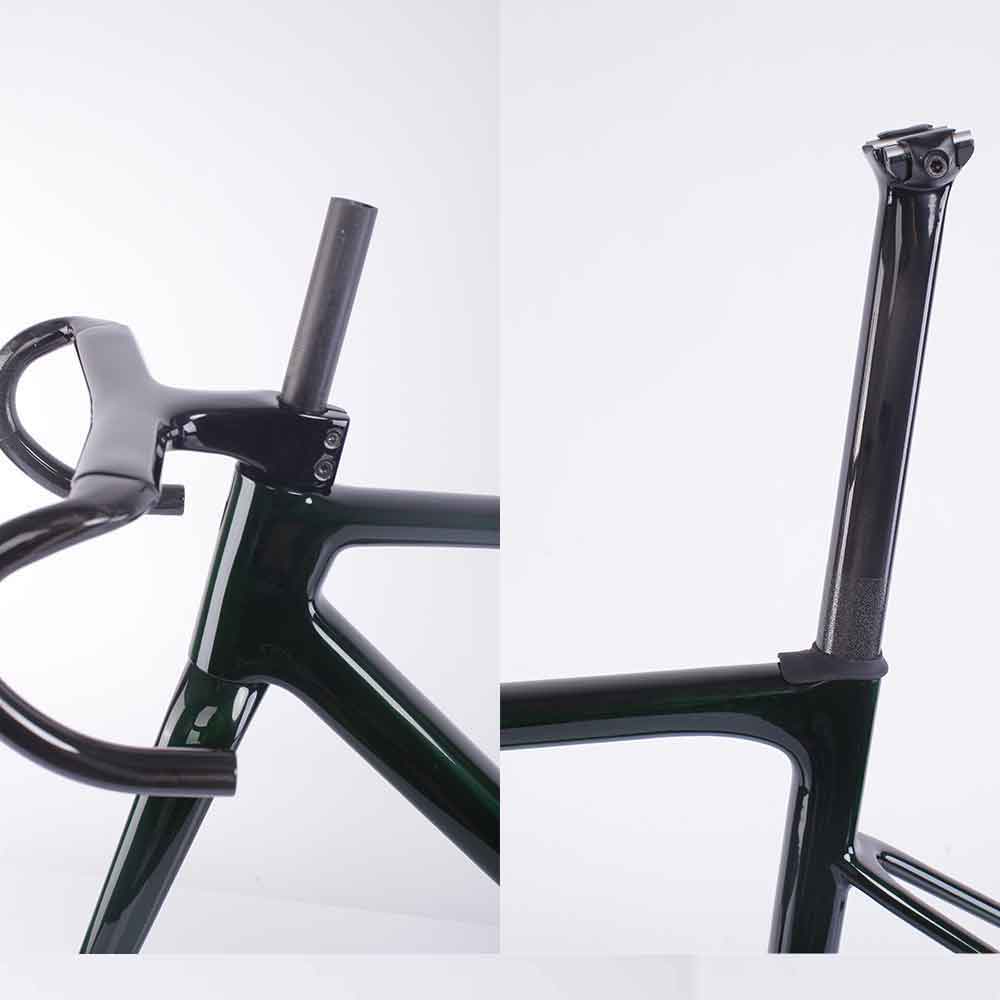

Frame Detail

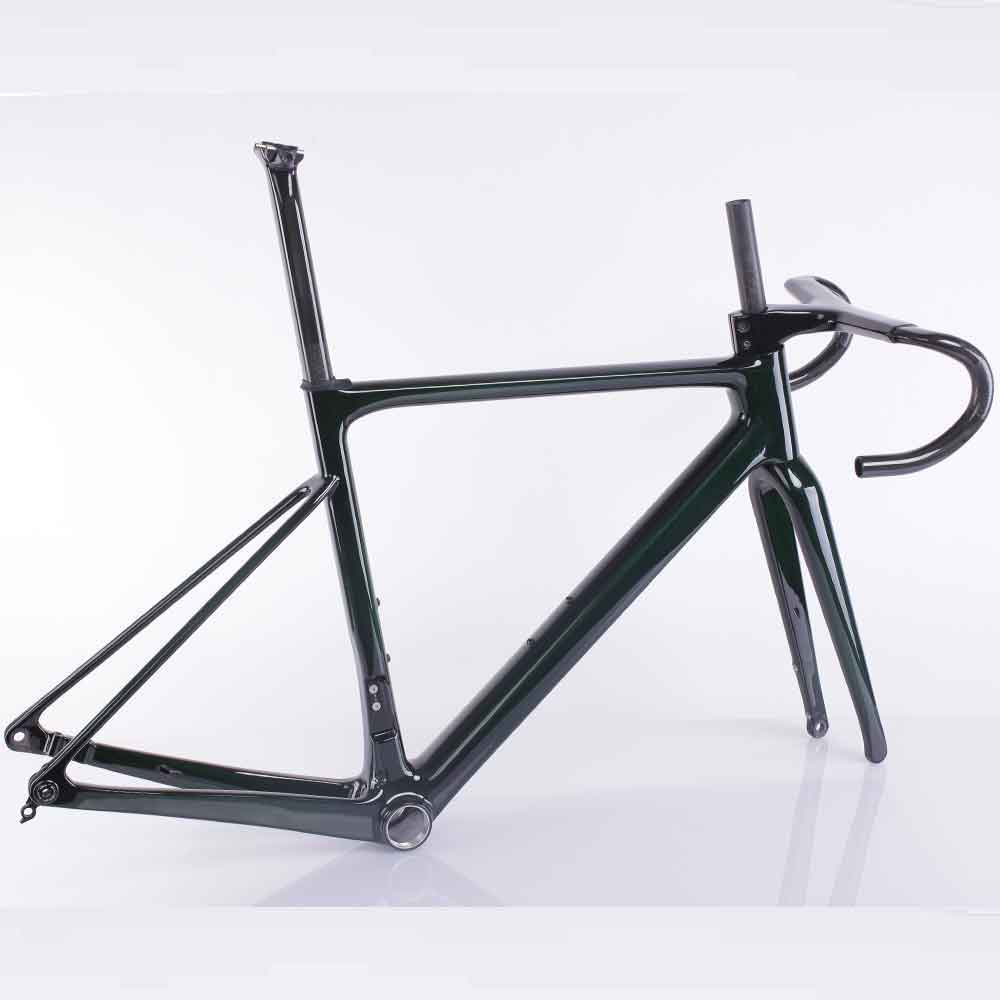

Ultra Light Road Bike Frame

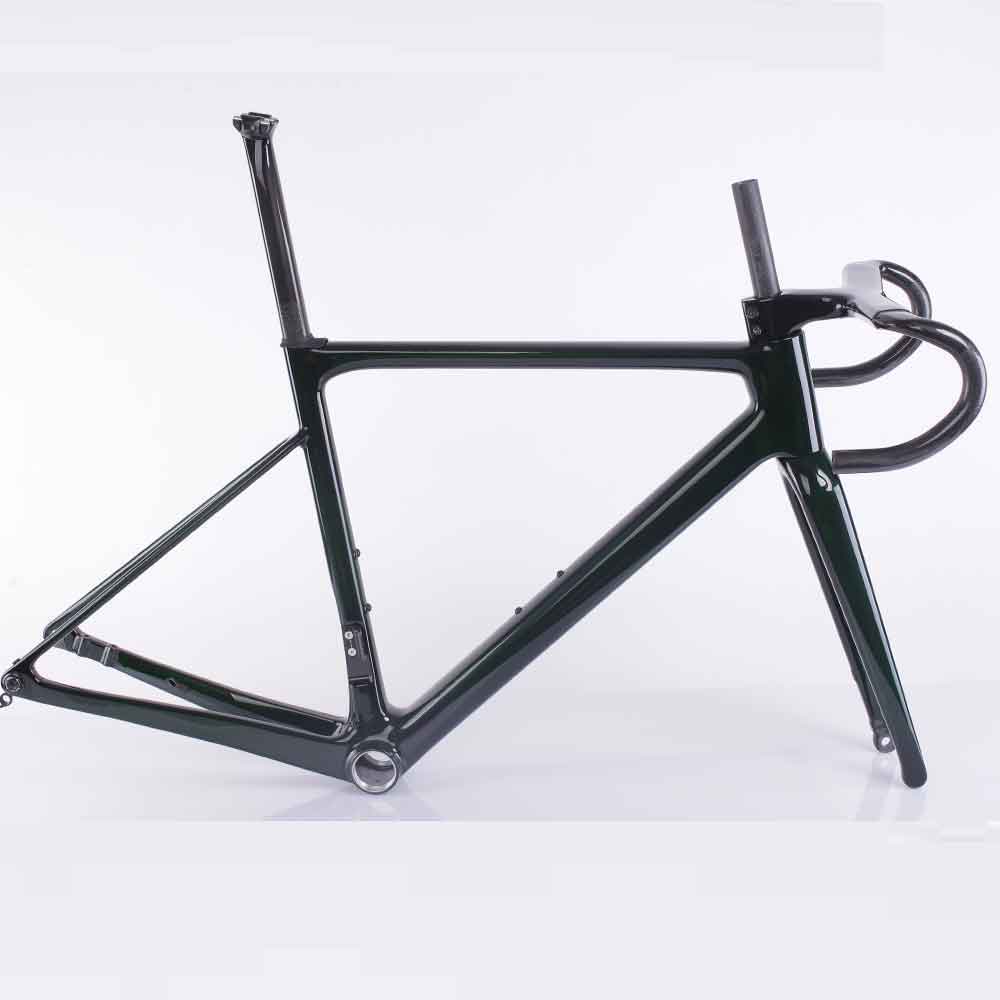

Super Light Road Bike Frame

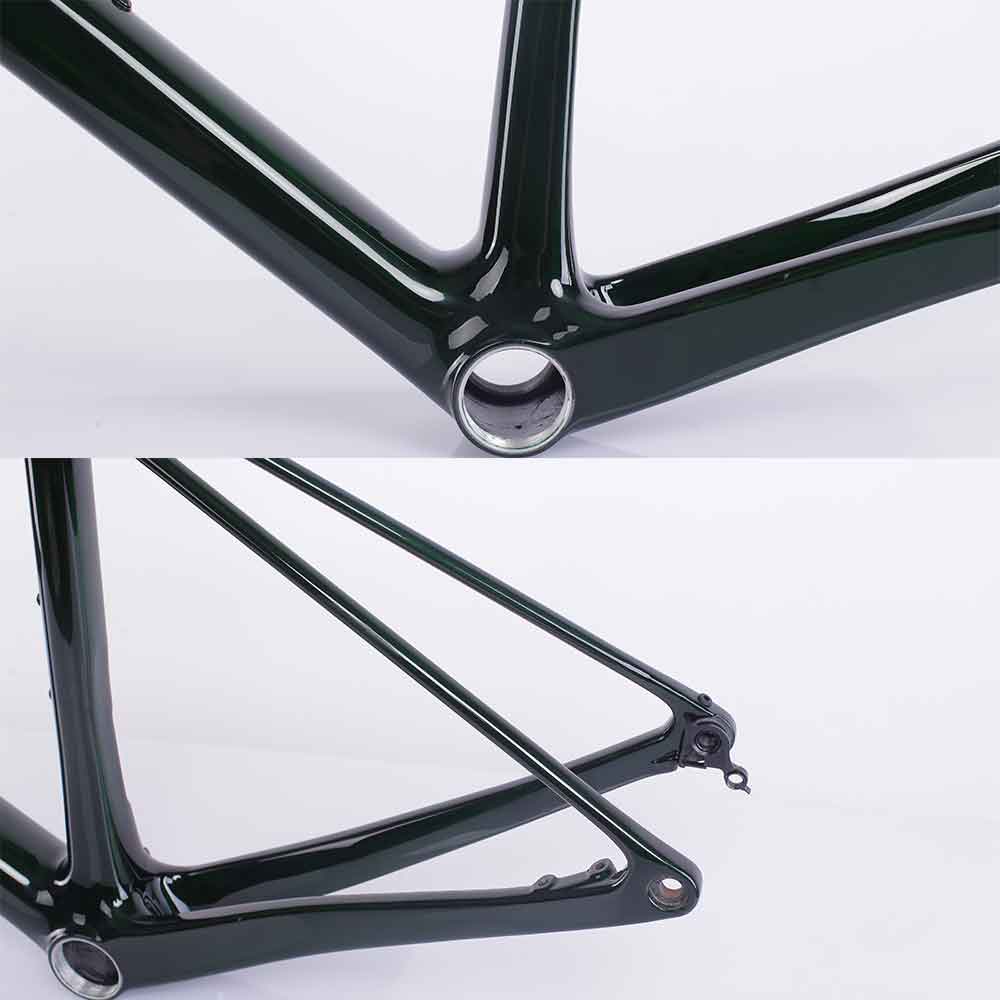

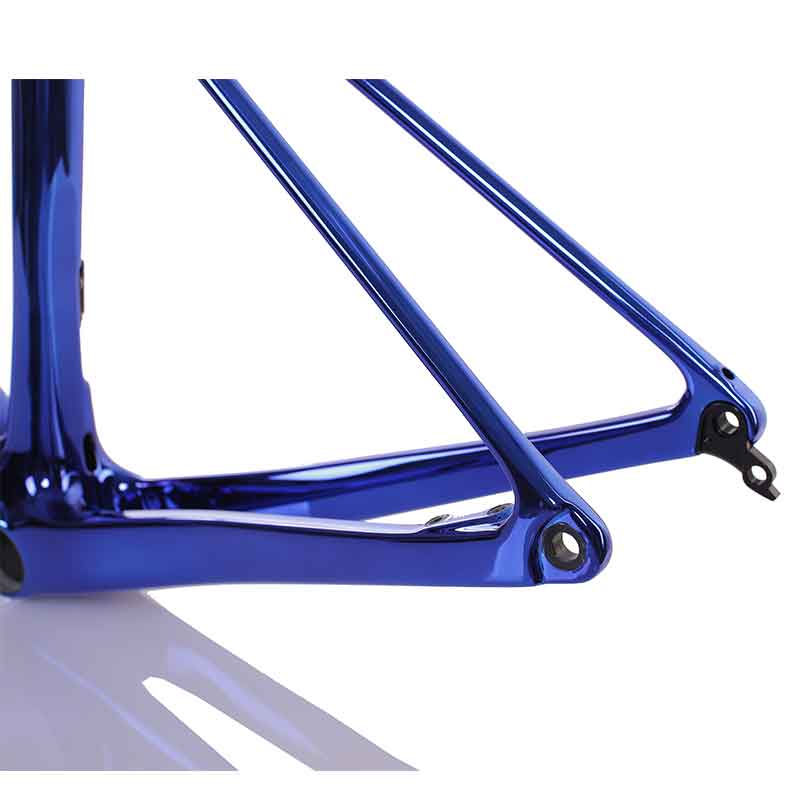

UDH Hanger

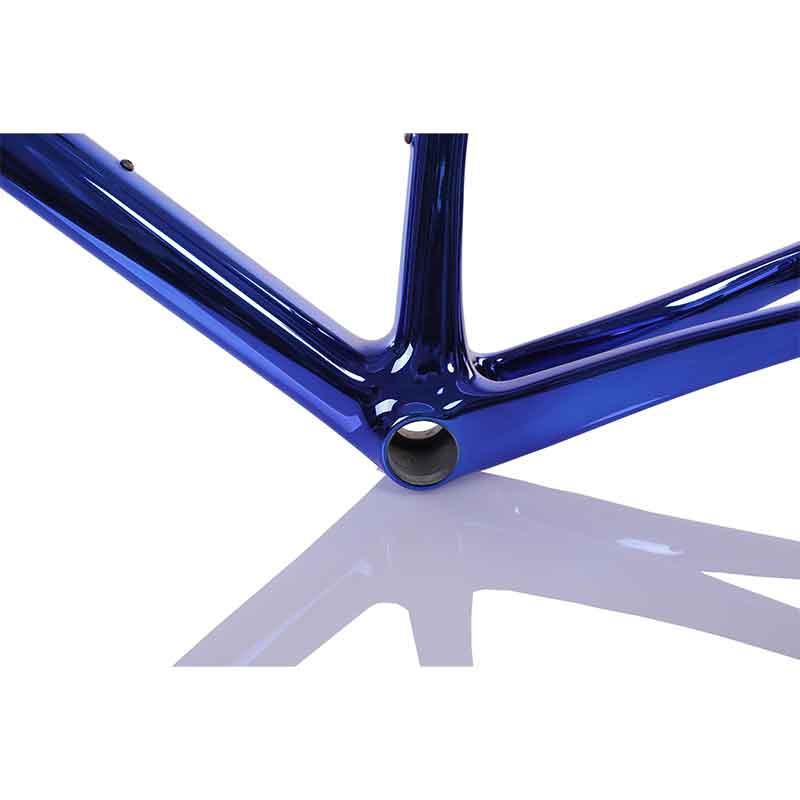

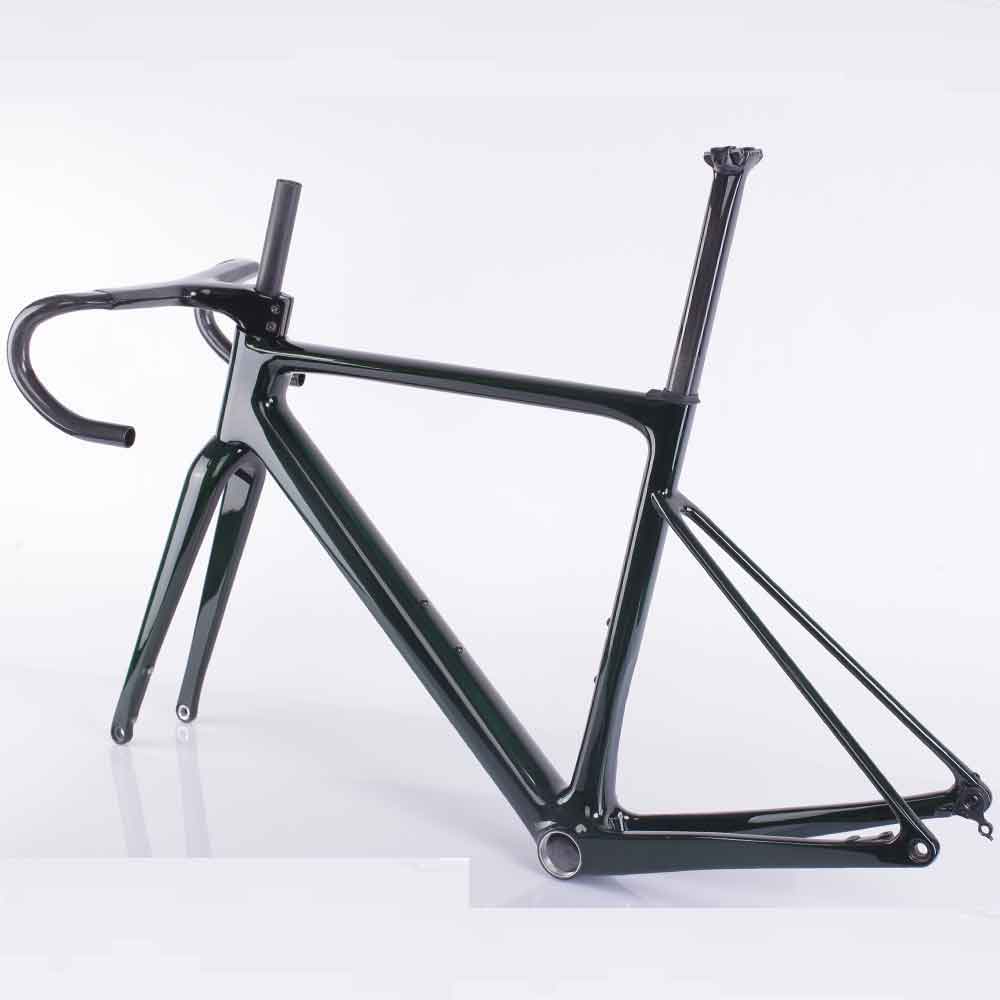

T47 Bracket

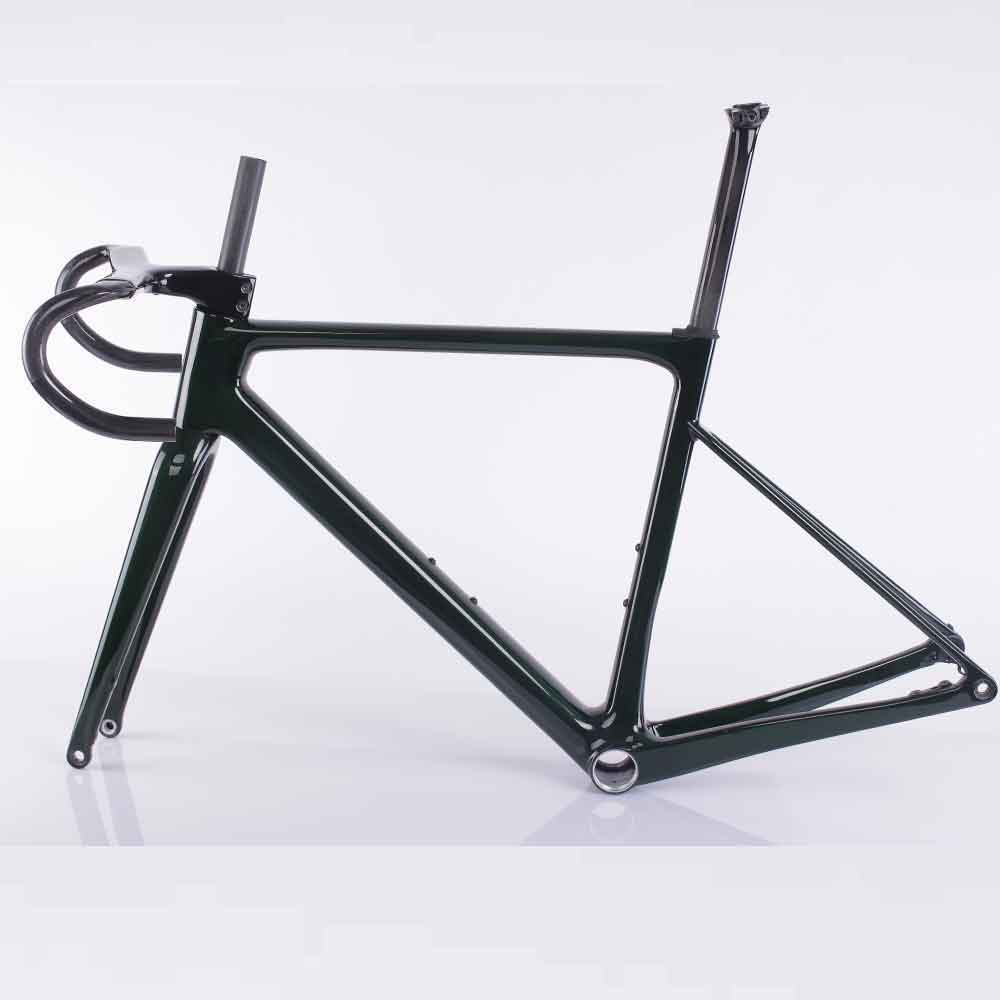

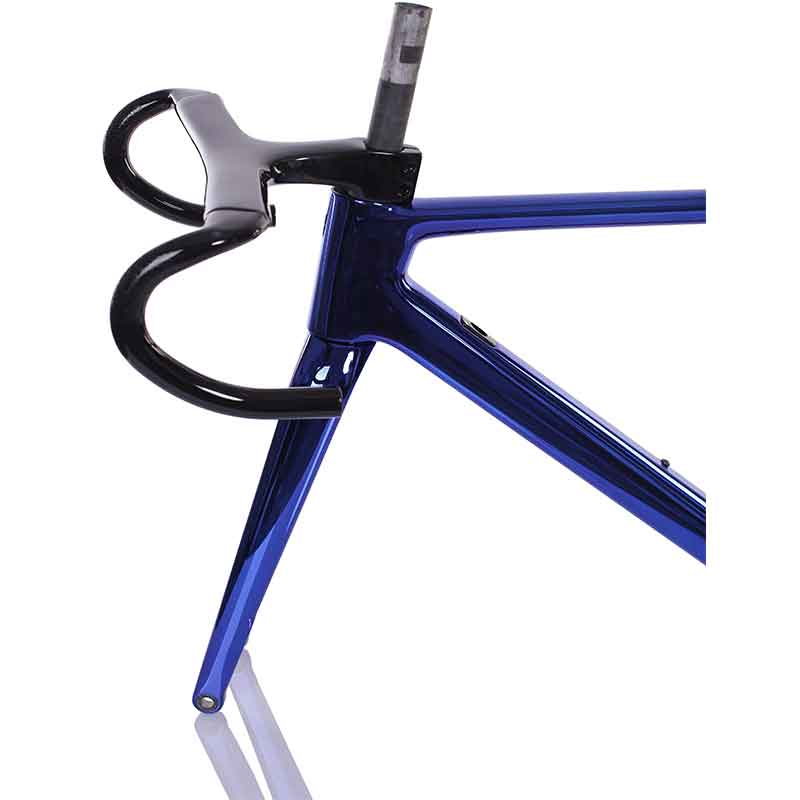

Road Endurance Bike Frame

Specification	Details
Material	100% Toray Grade T800/T1000/T1100 Carbon Fiber
Frame Weight	650-750g for Raw Finished(XS-XXL);
Fork Weight	320g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube
Tire Clearance	700c x 35mm; 5mm Tire Clearance
Bottom Bracket	T47 85.5mm
Front Derailleur	2*12 Shimano Or Sram
Seatpost	Aero Shape; Zero Offset/Seback
Hanger	UDH (Universal Derailleur Hanger), 1.0mm Pitch
Brake Type	Disc Brake (Flat Mount)
Rotor Size (Max)	140/160mm (Front), 140/160mm (Rear)
Axle Standard	AL7075 Anodized Black, 12x118mm1.0P (Front) / 12x169mm1.0P (Rear)
Headtube	1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD
Bearing Size	52mm OD, 40mm ID Upper And Lower; 8mm Height Upper, 6.5mm Height Lower
Frame Sizes	XS, S, M, L, XL, XXL
Pacakges Included	Frame, Fork, Seatpost, Axles, Headset; Handlebar Avaliable
Key Features	Ultra Light Design, Endurance Road

Ultra Light Road 720G Bike Frame

Factory Capacity

Lead Time: 3000 Sets Per Month

Customized Painting: Accepted

OEM Service: Accepted

MOQ: 20 sets

Sample: Provided

Carbon Fiber Road Endurance Bike Frame

Frame Data Sheet

Material: 100% Toray T1000/T1000/T1100 Carbon Fiber

Carbon Weave: UD/3K, UD Will Be Recommend

Frame Weight: 650g+-15g(XS Raw Finished)

Fork Weight: 320g+-10g

Bracket:T47 85.5mm

Hanger:UDH

Frame: 12*142mm

Fork: 12*100mm

Max Tire: 700*35C

Size:XS/S/M/L/XL/XXL

Key Features:

650G(RAW FINISHED XS)
FULLY INTERNAL CABLE ROUTING
T47 85.5MM
UDH HANGER
FLAT MOUNT 140/160MM DISC BRAKE
HEADTUBE: 1-/2" (UP AND DOWN)
HIDDEN CLAMP

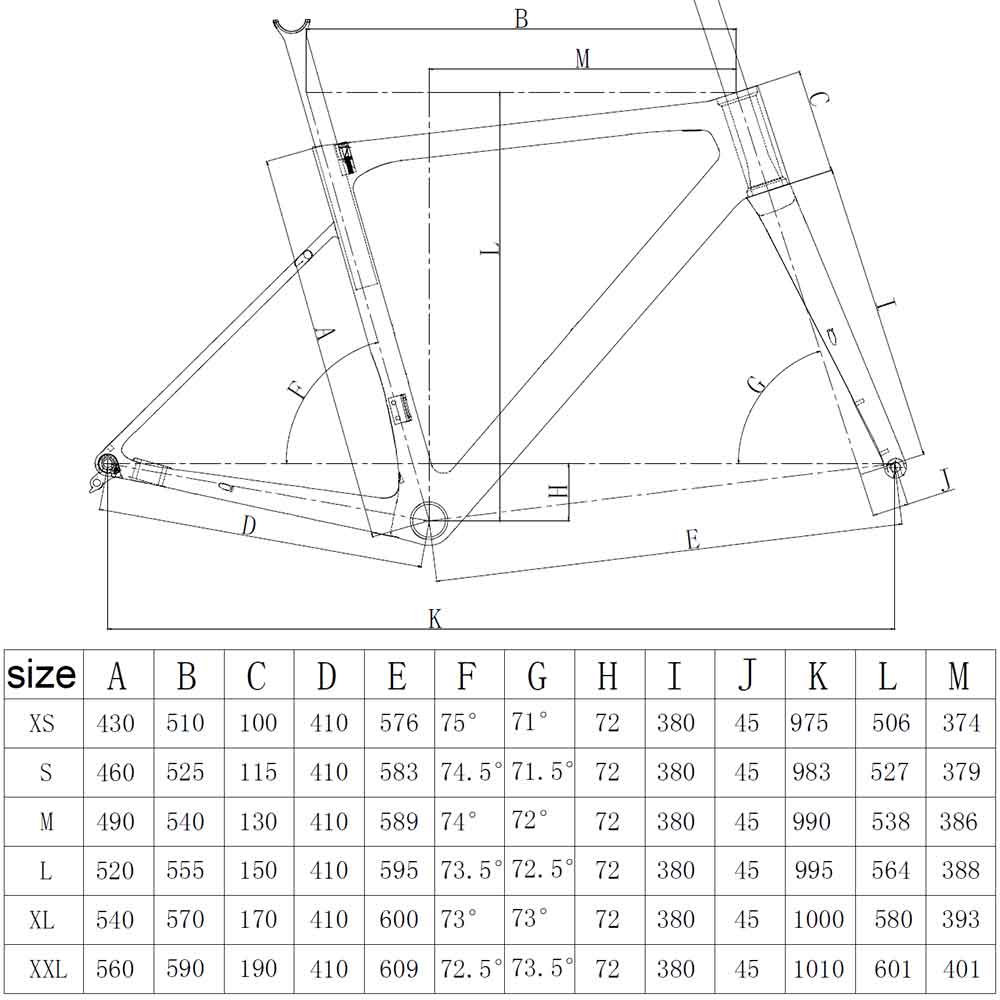

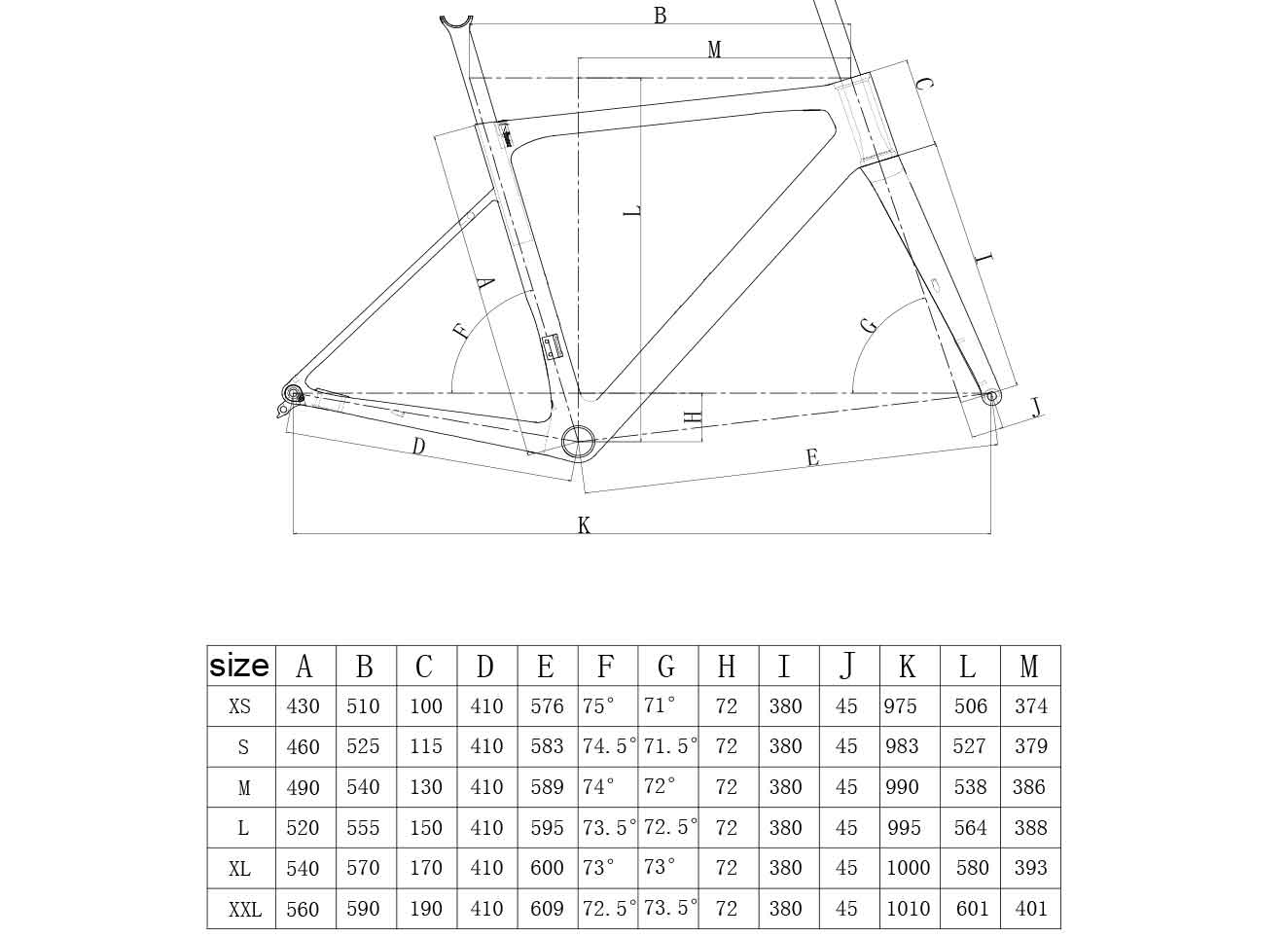

FM066 Ultra Light Road Bike Frame Geometry

SIZE	A Seat Tube Length	B Top Tube Length	C Headtube Length	D Chainstay Length	E Front Center	F Seat Tube Angle	G Head Tube Angle	H BB Drop	I Fork Length	J Fork Rake/Offset	K Wheelbase	L Stack	M Reach
XS	430	510	100	410	576	75°	71°	72	380	45	975	506	374
S	1460	525	115	410	583	74.5°	71.5°	72	380	45	983	527	379
M	490	540	130	410	589	74°	72°	72	380	45	990	538	386
L	520	555	150	410	595	73.5°	72.5°	72	380	45	995	564	388
XL	540	570	170	410	600	73°	73°	72	380	45	1000	580	393
XXL	560	590	190	410	609	72.5°	73.5°	72	380	45	1010	601	401

Customer Reviews

Write a Review

0 out of 5

☆☆☆☆☆

Based on 0 verified reviews

5 Star

4 Star

3 Star

2 Star

1 Star

Loading reviews...

Frequently Asked Questions

What is your terms of payment?

For small orders, we accept PayPal, bank transfer, or Western Union.

For bulk orders, a 30% deposit by T/T (bank transfer) is required.

What is the lead time for 100 sets?

Lead time depends on the complexity of the paint design and frame production.

Normally, production takes 45 days plus an additional 15 days for painting.

For urgent orders, we can prioritize your production schedule, so lead time is negotiable.

Do you test all your goods before delivery?

All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.

Which carbon fiber you use?

For our standard-weight frames, we use Toray T700 and T800 carbon fiber.
For customers looking for lightweight frames, we use T800 and T1000 carbon fiber.

All frames are tested to 1.3 times the ISO 4210 standard. We can also provide EN certification upon customer request.

Which carbon weave you have?

We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
If no custom painting is requested, we can offer 3K carbon weave instead.

The carbon weave pattern is based on your requirements, and we will produce accordingly.

How about free sample?

For OEM/ODM brands, we can provide free samples for quality inspection first. You will only need to cover the shipping cost.

If you would simply like to verify our product quality, you will be required to pay 50% of the frame cost plus shipping fees.

Feel free to contact us for sample evaluation. We look forward to cooperating with you.

Can you draw the 3D file for us?

Certainly, we can provide 3D drawings for you. However, you will need to provide us with the tube shape and geometric specifications.

Additionally, we can produce a 3D-printed frame prototype prior to making the steel mold.

Can I order a custom paint job?

Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.

What is the warranty?

All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
