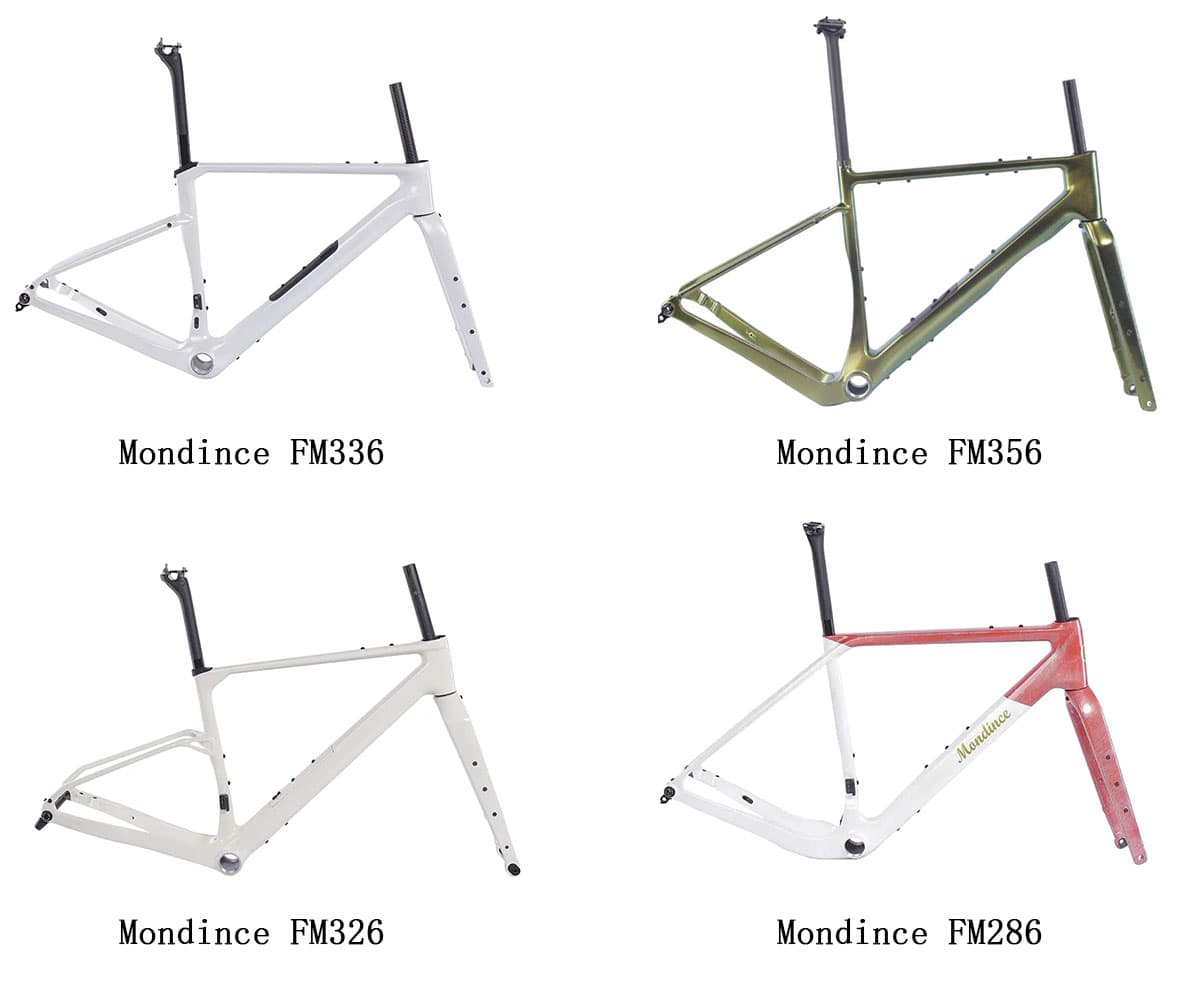

Mondince FM336 High Stiffness Storage Space Carbon Gravel Frame
All-round gravel frame with storage
Choose the FM336 when one carbon gravel frame needs to cover weekday riding, weekend racing and long mixed-surface routes without giving up integrated storage.
- Frame
- Fork
- Seatpost
- FD Cover
- Headset
- Bag
- Axles
- Tax(EU/UK/USA)
- Custom Painting
- Shipping Cost
- Taxes(Other Countries)
Build your gravel bike with this frameset
Contact us to confirm availability, delivery options or custom requirements. Custom paint and brand customization are quoted separately.

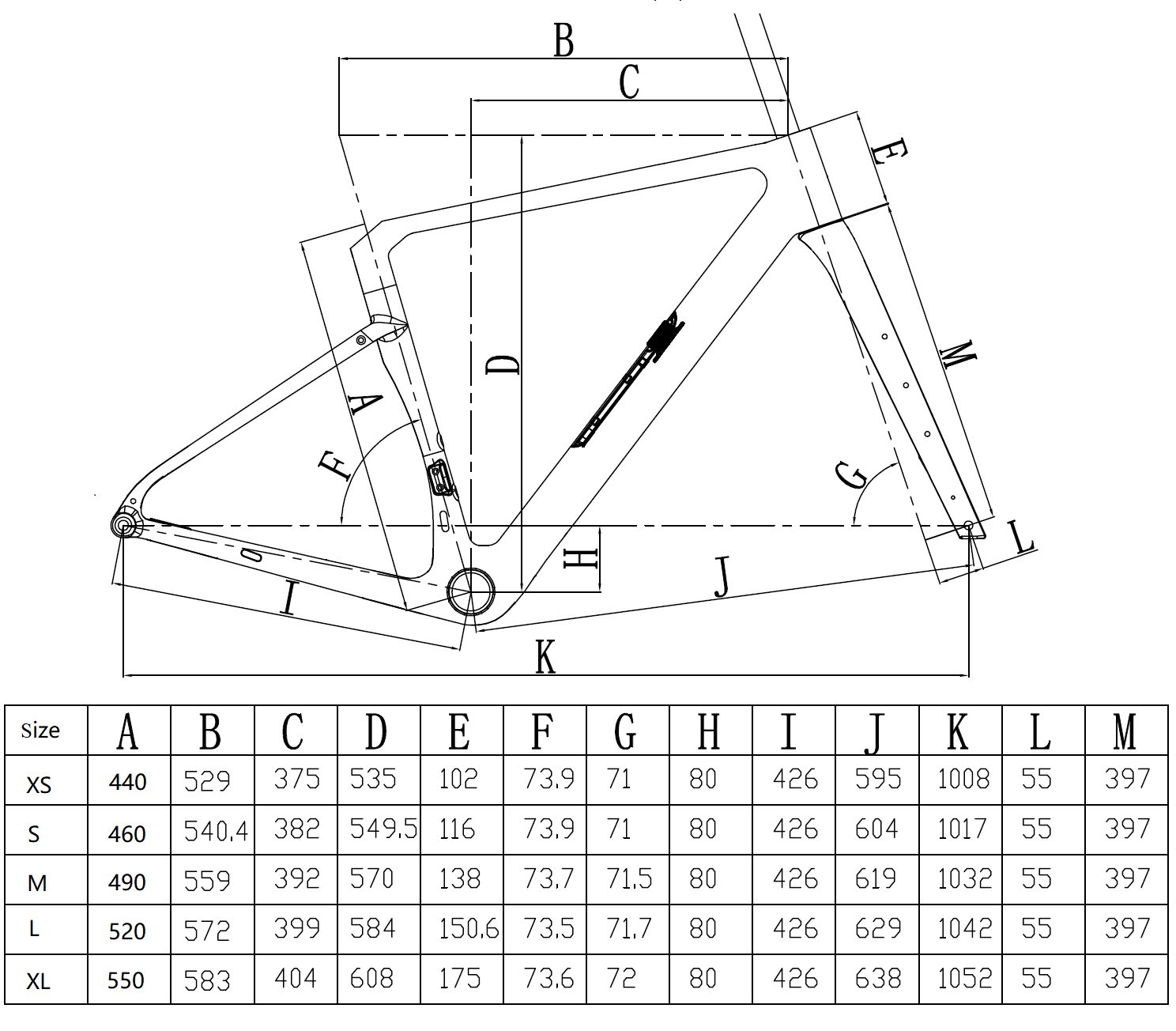

Check Price & Availability → OEM OptionsFrame Detail
| SIZE | A Seat Tube Length |
B Top Tube Length |
C Headtube Length |
D Chainstay Length |
E Front Center |
F Seat Tube Angle |
G Head Tube Angle |
H BB Drop |
I Fork Length |
J Fork Rake/Offset |
K Wheelbase |
L Stack |
M Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 440 | 529 | 102 | 426 | 595 | 73.9° | 71° | 80 | 397 | 55 | 1008 | 535 | 375 |
| S | 460 | 540.4 | 116 | 426 | 604 | 73.9° | 71° | 80 | 397 | 55 | 1017 | 549.5 | 382 |
| M | 490 | 559 | 138 | 426 | 619 | 73.7° | 71.5° | 80 | 397 | 55 | 1032 | 570 | 392 |
| L | 520 | 572 | 150.6 | 426 | 629 | 73.5° | 71.7° | 80 | 397 | 55 | 1042 | 584 | 399 |
| XL | 550 | 583 | 175 | 426 | 638 | 73.6° | 72° | 80 | 397 | 55 | 1052 | 608 | 404 |
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T800+T1000 Carbon Fiber |
| Frame Weight | 1050g (M Size,Raw Carbon Finished) |
| Fork Weight | 430g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube |
| Tire Clearance | 700c x 47mm; 5mm Tire Clearance |
| Bottom Bracket | T47 85.5mm |
| Front Derailleur | 1*12/2*12 Shimano Or Sram; Cover Provided For 1X |
| Seatpost | 27.2mm Round, 7*7mm/7*9mm Compatiable |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size | 160/180mm (Front), 160/180mm (Rear) |
| Axle Standard | AL7075 Anodized Black, 12x119mm*1.75P (Front) / 12x171mm*1.0P (Rear) |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 7mm Height Upper, 7mm Height Lower |
| Frame Sizes | XS, S, M, L, XL |
| Pacakges Included | Frame, Fork, Seatpost, Axles, Headset And Bag |
| Key Features | Integrated Downtube Storage, Aero Seatstay, Modern Geometry |

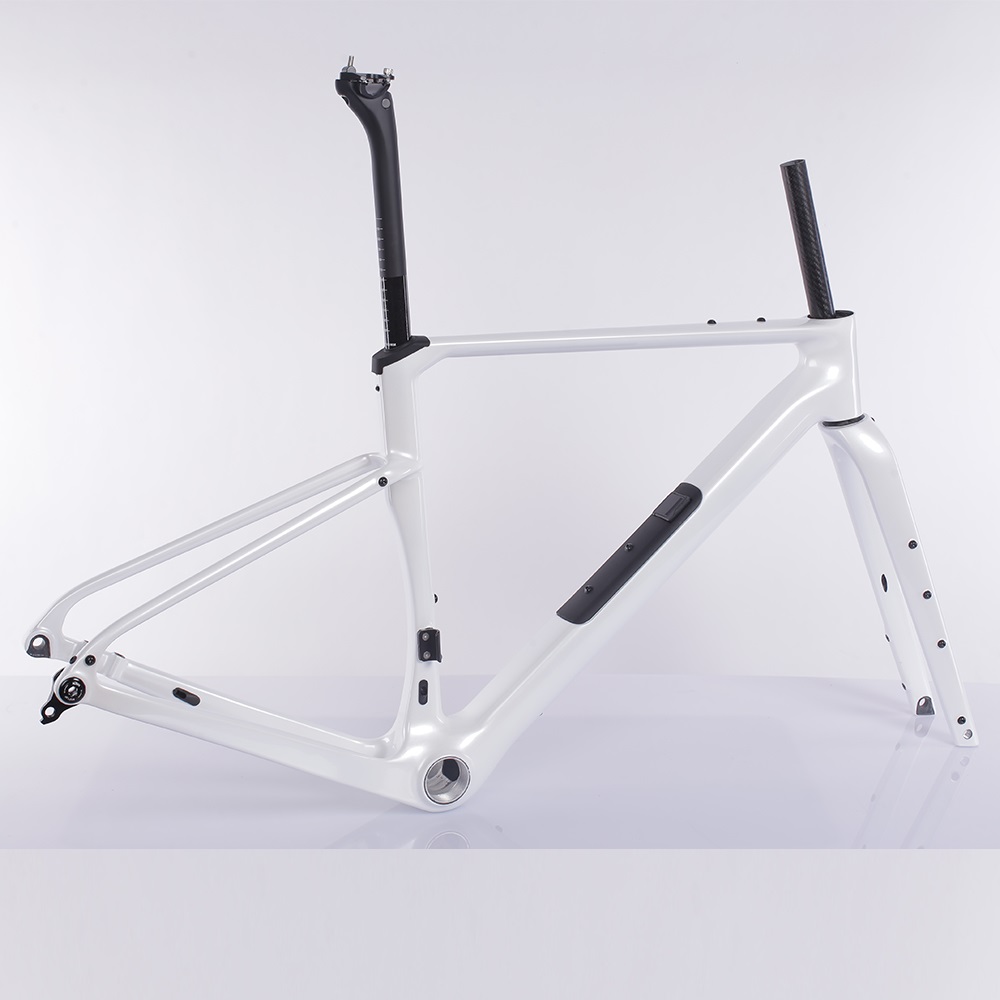

Toray Carbon Gravel Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 30 sets
Sample: Provided

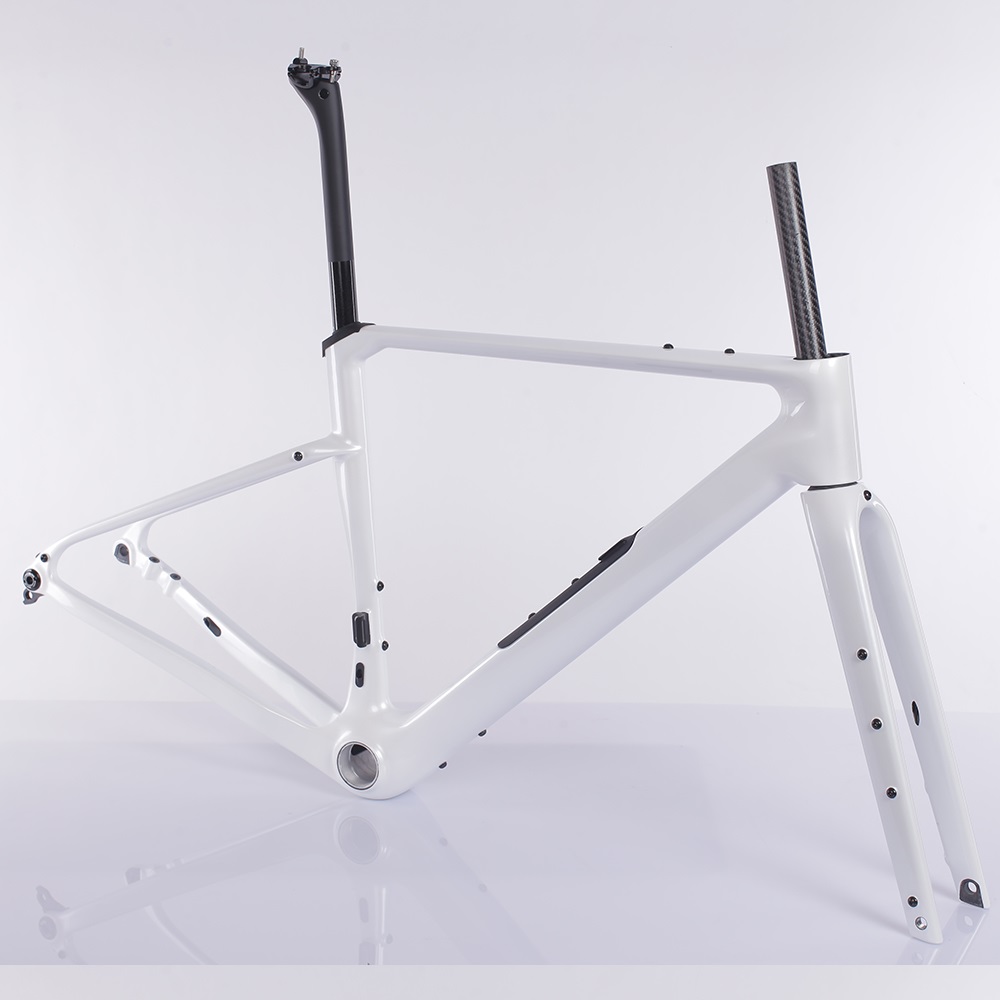

Carbon Fiber Gravel Bike Frame UDH Hanger
Frame Data Sheet
Material: 100% Toray T800+T1000 Carbon Fiber
Frame Weight: 980+-30g(XS Raw Finished); 12*142mm
Fork:12*100mm, 55mm Rake, 430g+-15g(UD Matt);
Max Tire: 700C*47mm
Size: XS/S/M/L/XL
Seatpost: 27.2mm
Bracket:T47 85.5mm
Hanger:UDH
Key Features:
- T47 85.5MM BRACKET

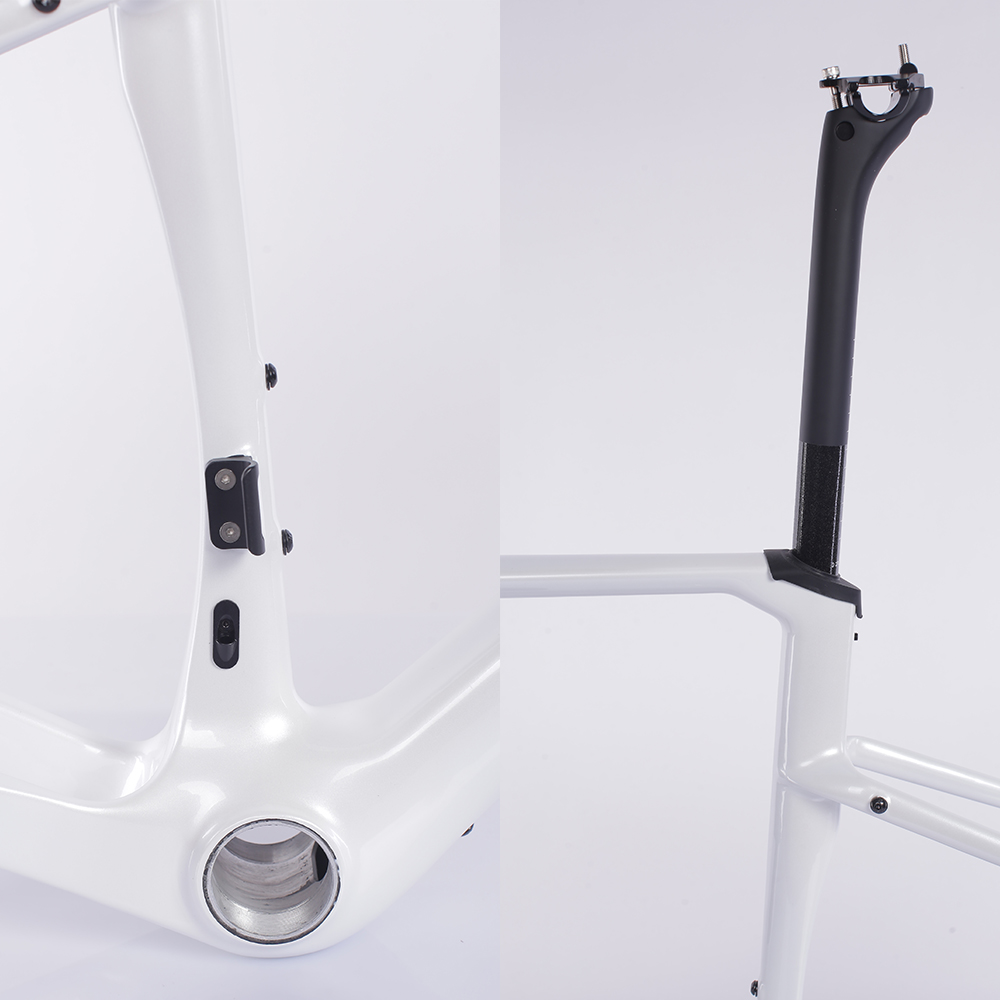

- MAGNET COVER STORAGE SPACE
- AERO DESIGN
- HEADTUBE: 1-/2" UP AND DOWN
- UDH HANGER
- 27.2MM ROUND SEATPOST
Customer Reviews

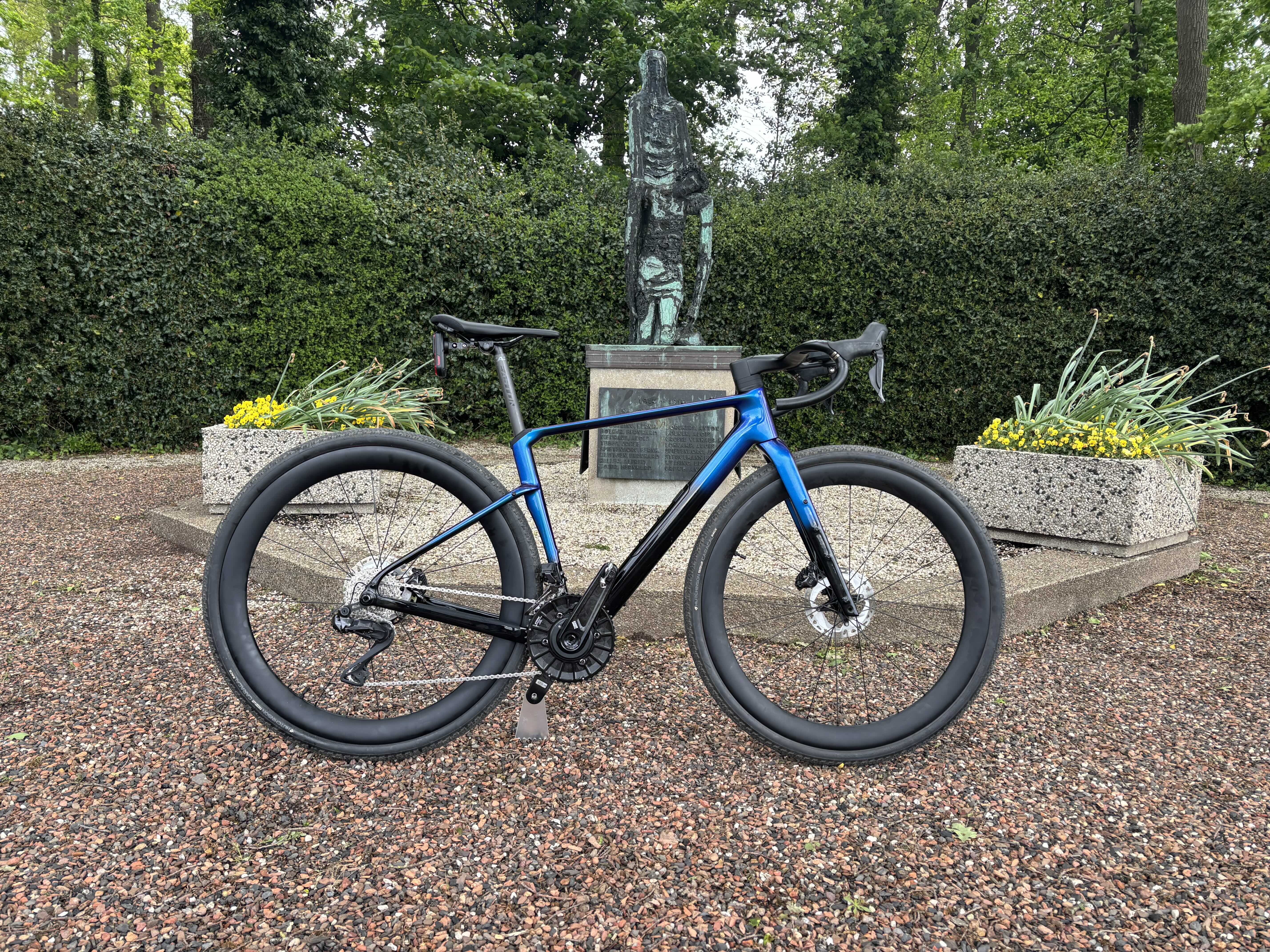

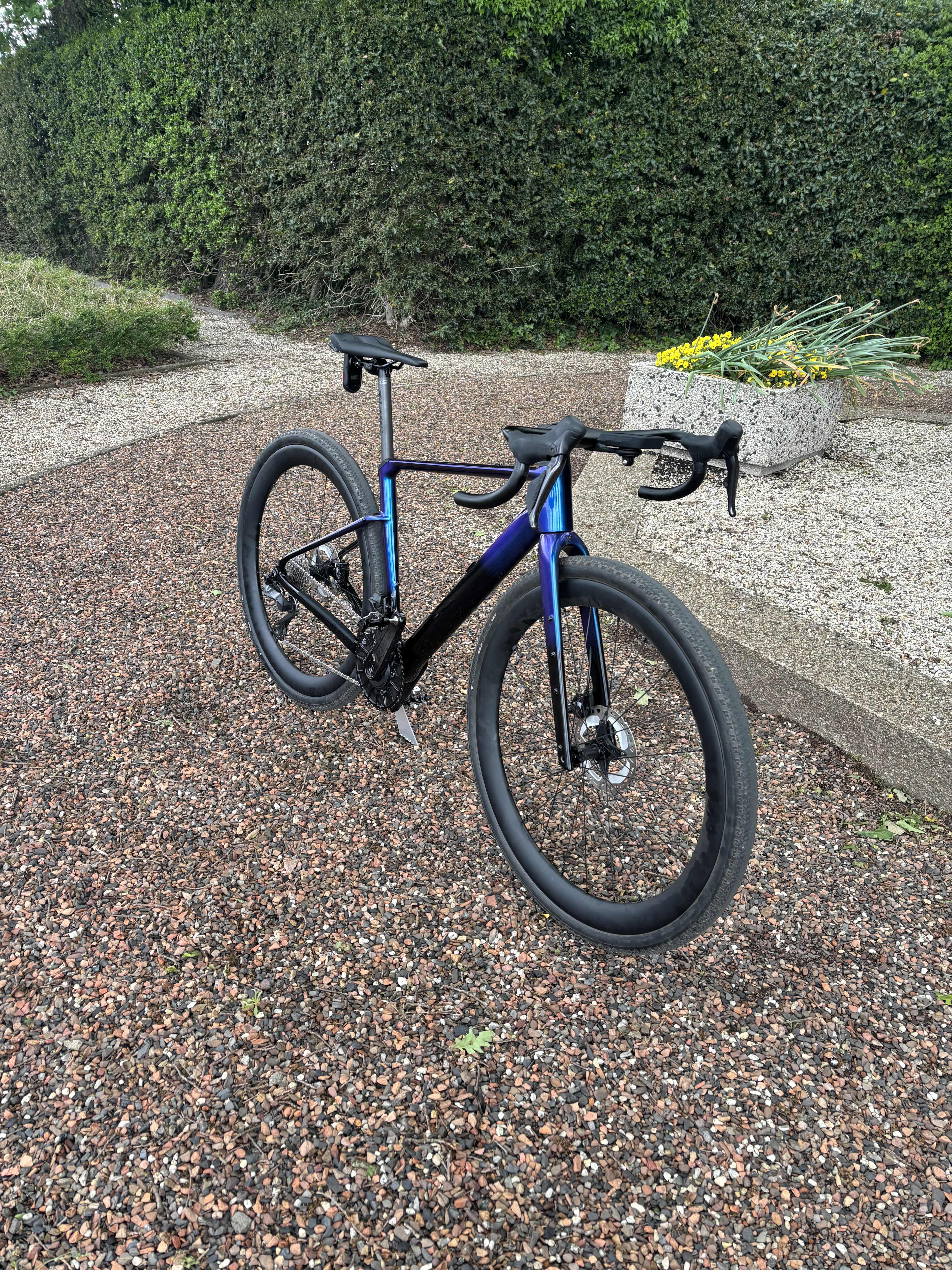

Write a ReviewVery happy with my FM336 frameset
Good communication, fast shipping to Germany and the custom paint turned out great. The frame quality looks excellent and the bike rides really smooth and stable. Overall a very positive experience with Mondince Cycle
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
Yes, as an OEM manufacturer, we offer full custom geometry and layup services for brand partners. The MOQ for custom frames is 50 sets. Additional bottle mounts or custom rack mounts can be discussed during the design phase.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Our frames accommodate up to 700x50mm or 650Bx2.1" tires. FM316 and FM326 are designed for 50mm clearance.
Yes, we stock standard colors with MOQ of 1 set for private customers.
2 years warranty on frame, 1 year on fork. 130% ISO tested.
Yes, we provide full custom geometry services for brand partners.
A gravel bike frame features a longer wheelbase, slacker head angle, and wider tire clearance (typically 45-50mm) for stability on loose surfaces. Road frames prioritize aerodynamics and quick handling. Our carbon gravel bike frames are designed for mixed‑terrain comfort.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
Fit and Build Support
Size, compatibility and setup guidance before you buy
