Mondince FM316 2026 AERO Design T47 Bracket Gravel Bike Frame
- Frame
- Fork
- Seatpost
- FD Cover
- Headset
- Bag
- Axles
- Tax(EU/UK/USA)
- Custom Painting
- Shipping Cost
- Taxes(Other Countries)
🏕️ Looking for a bikepacking-ready frame? Compare all Mondince carbon gravel bike frames including this model.
The FM316 is Mondince's premium carbon gravel frame, engineered for the perfect balance of aero efficiency and all-day adventure comfort. Built with 100% Toray grade T800+T1000 carbon fiber, this frame weighs just 1150g while maintaining exceptional stiffness for responsive handling on mixed terrain.
👉 Get a Quote for FM316 or FM336 →
The standout feature is its integrated downtube storage – a watertight compartment perfect for stashing tools, tubes, and snacks without bulky frame bags. The T47 bottom bracket and UDH hanger represent the latest gravel standards, ensuring future-proof compatibility and enhanced frame stiffness.
Whether you're racing gravel or embarking on multi-day bikepacking trips, the FM316 delivers the performance and practicality you need. OEM customization available for geometry, painting, and branding.
Why Mondince FM316 is the Best Carbon Gravel Frame for Endurance Riding
The Mondince FM316 carbon gravel frame is engineered for riders who demand the perfect balance of aero efficiency, lightweight performance, and all-day comfort. At just 1150g, this Toray T800+T1000 frame delivers exceptional stiffness-to-weight ratio for responsive handling on mixed terrain.
Key advantages of the Mondince FM316 include:
- Integrated downtube storage — 0.8L watertight compartment for tools and snacks
- T47 85.5mm threaded bottom bracket — creak-free, easy maintenance
- UDH hanger — compatible with SRAM Transmission and future drivetrains
- 50mm tire clearance — fits 700x50c or 650Bx2.1" tires
- EN certified — tested to 1.3× ISO 4210 standards
Whether you're a competitive gravel racer, a bikepacking enthusiast, or a brand looking for OEM carbon frame manufacturing, the Mondince FM316 offers the ideal platform. Custom geometry and painting available.
Build your gravel bike with this frameset
Contact us to confirm availability, delivery options or custom requirements. Custom paint and brand customization are quoted separately.
Check Price & Availability → OEM OptionsFrame Detail

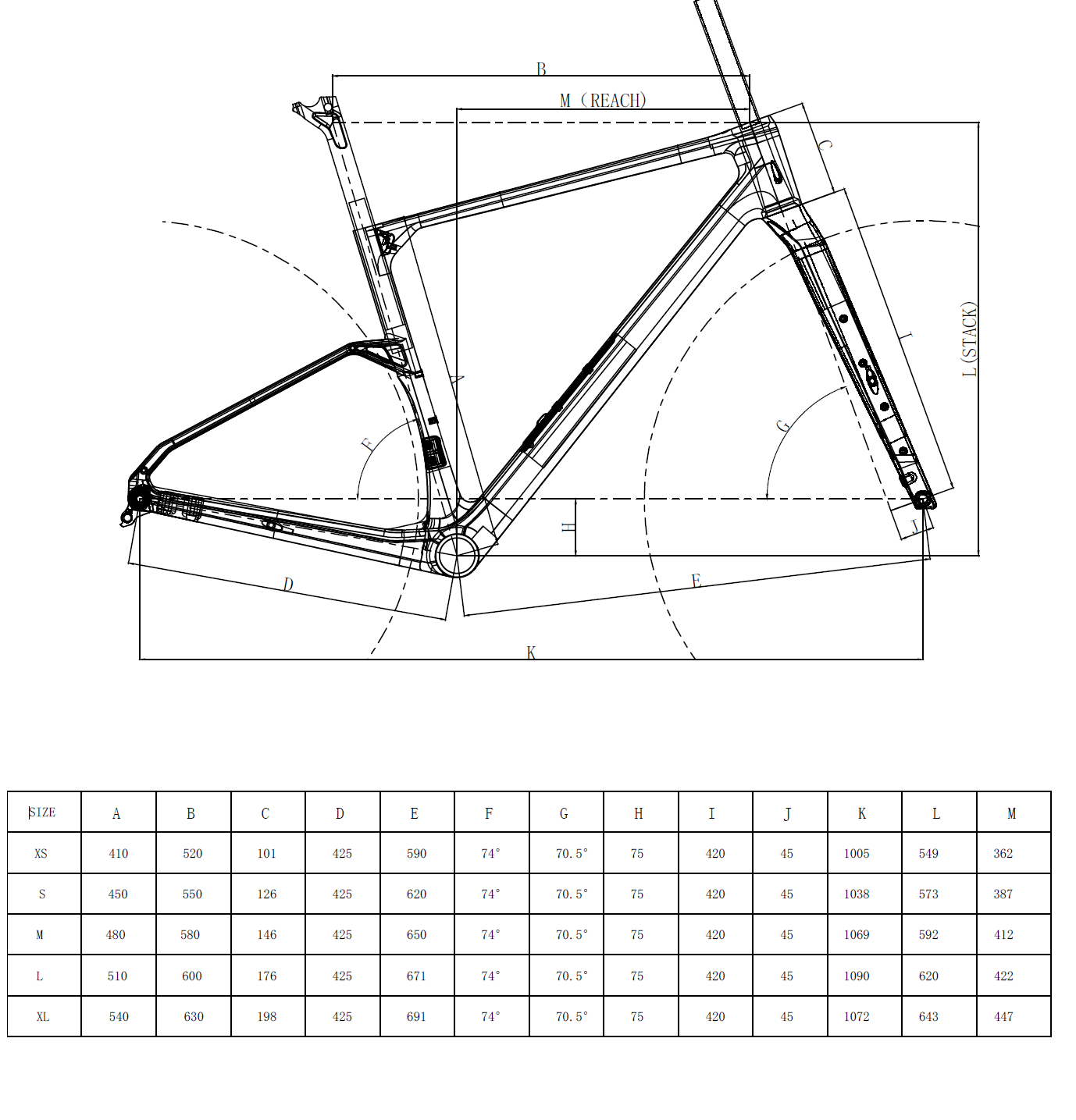

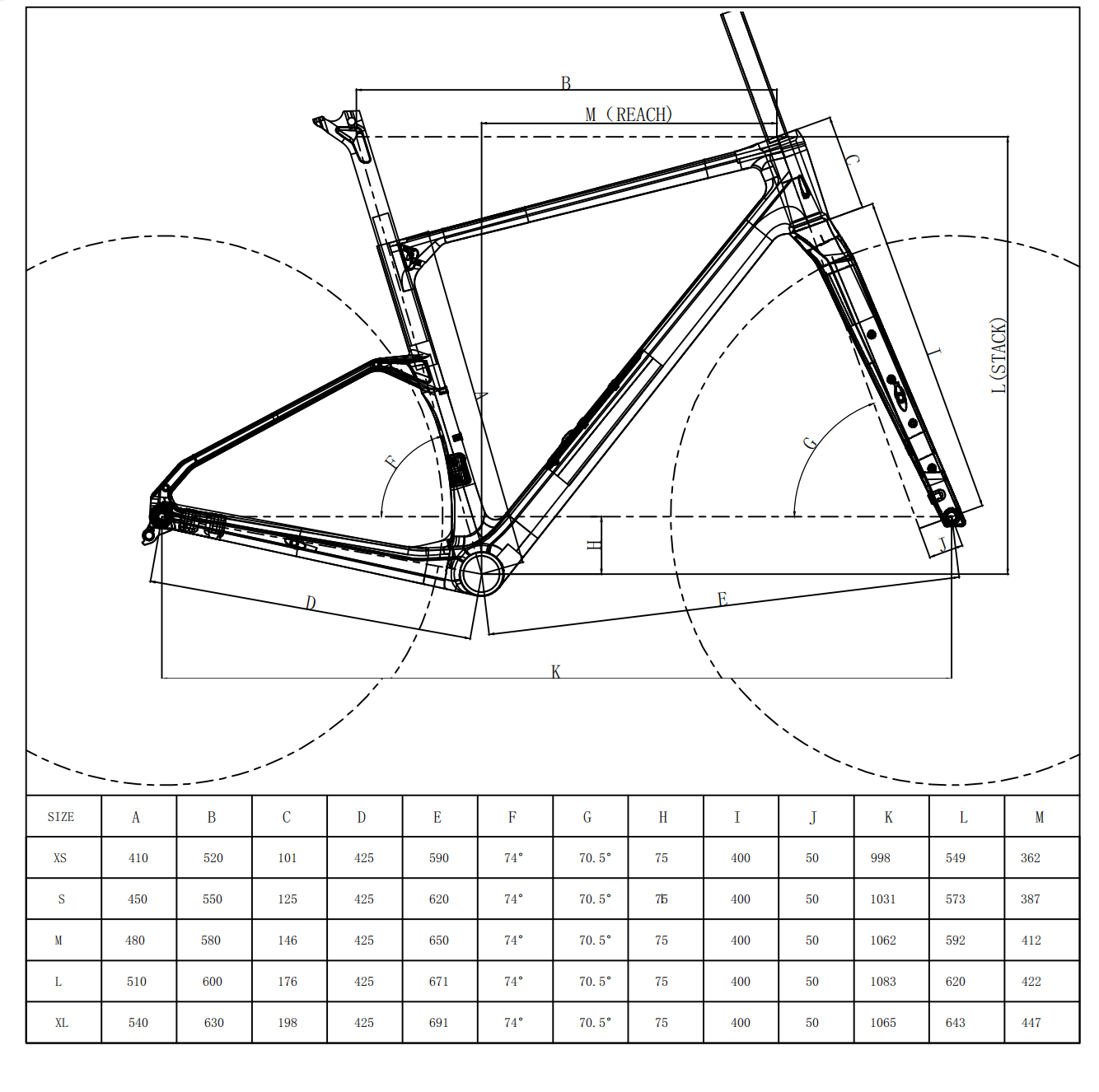

| SIZE | A Seat Tube Length |
B Top Tube Length |
C Headtube Length |
D Chainstay Length |
E Front Center |
F Seat Tube Angle |
G Head Tube Angle |
H BB Drop |
I Fork Length |
J Fork Rake/Offset |
K Wheelbase |
L Stack |
M Reach |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 410 | 515.8 | 101 | 425 | 573 / 578 | 75° | 71° | 85.5 | 395 | 45 / 50 | 992 / 997 | 540 | 375.8 |
| S | 450 | 546.4 | 125 | 425 | 614 / 619 | 75° | 71° | 85.5 | 395 | 45 / 50 | 1025 / 1029.5 | 562 | 400 |
| M | 480 | 576.7 | 146 | 425 | 646 / 651 | 75° | 71° | 85.5 | 395 | 45 / 50 | 1056 / 1061.5 | 581 | 425 |
| L | 510 | 594.9 | 176 | 425 | 666 / 671 | 75° | 71° | 85.5 | 395 | 45 / 50 | 1080 / 1085 | 610 | 435 |
| XL | 540 | 626.4 | 198 | 425 | 699 / 704 | 75° | 71° | 85.5 | 395 | 45 / 50 | 1110 / 1115 | 632 | 460.5 |
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T800+T1000 Carbon Fiber |
| Frame Weight | 1150g (M Size,Raw Carbon Finished); 42g for Downtube Cover Raw Finished; |
| Fork Weight | 430g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube |
| Tire Clearance | 700c x 50mm / 650B x 2.1"; 5mm Tire Clearance |
| Bottom Bracket | T47 85.5mm |
| Front Derailleur | 1*12/2*12 Shimano Or Sram; Cover Provided For 1X |
| Seatpost | 27.2mm Round, 7*7mm/7*9mm Compatiable |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size (Max) | 160/180mm (Front), 140/160mm (Rear) |
| Axle Standard | AL7075 Anodized Black, 12x125mm*1.0P (Front) / 12x174mm*1.0P (Rear) |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 7mm Height Upper, 7.5mm Height Lower |
| Frame Sizes | XS, S, M, L, XL |
| Pacakges Included | Frame, Fork, Seatpost, Axles, Headset And Bag |
| Key Features | Integrated Downtube Storage, Aero Seatstay, Flip Chip (45/50mm Rake) |
Air Hole UDH Hanger T47 Carbon Gravel Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 30 sets
Sample: Provided
AERO Design T47 Bracket Gravel Bike Frame
Frame Data Sheet
Stem Recommend For 395mm A-C Fork
XS:40-50mm; S:50-60mm; M:60-70mm; L:70-80mm; XL:70-80mm
Provided Headset With Cable Out From Headtube;
Separated Stem And Bar Recommend;
Crankset Recommend:160mm/165mm For 395mm Fork;
Material: 100% Toray T800+T1000 Carbon Fiber
Frame Weight: 1030g+-30g(XS, Raw Finished ); 12*142mm
Fork One: 12*100mm, 45/50mm Rake, 395mm A-C;
430g+-15g(UD Matt);Flip Chip;
Rotor:160/180mm Front; 140/160mm Rear;
Max Tire: 650B*2.1''/700C*50mm
Size: XS/S/M/L/XL
Seatpost: 27.2mm
Key Features:
- 395MM A-C GRAVEL FORK
- GRAVEL RACING STYLE
- 45/50MM FLIP CHIP
- T47 85.5MM BRACKET
- INDEPENDENT STORAGE SPACE
- AERO SEATSTAY DESIGN
- HEADTUBE: 1-/2" UP AND DOWN
- UDH HANGER
Customer Reviews
Write a ReviewAbsolut Monster for a this price
The value you will get from this frame is insane. I build a Race Gravel Bike and this frame is absolut stiff with a good carbon layer build quality. Compared to premium brands the FM316 Carbon Frame is a valuable option for custom builds. There is no reason to hide The only thing mondince has pick up is paint quality at the mounting points. It's not a big deal (because you will never see it, but the quality there is could be improved.) Anyway this will not change my opinion about the frame, because I use it as a sport tool and for this price it's hard to get something from a premium brand in this quality.
Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
It allows you to carry essentials (multi-tool, spare tube, CO2, snacks) without needing a frame bag, keeping the bike's aerodynamics clean and your gear secure from the elements. It's a game-changer for bikepacking and long unsupported rides.
Yes, as an OEM manufacturer, we offer full custom geometry and layup services for brand partners. The MOQ for custom frames is 50 sets. Additional bottle mounts or custom rack mounts can be discussed during the design phase.
Absolutely. The aero seatstay and fork design, combined with the stiff T47 bottom bracket, make it highly efficient for power transfer. Many of our brand partners use the FM316 as the base for their gravel race team frames.
FM316 can use max 700*50mm tire with 5mm clearance. For gravel riding, we recommend 45mm. The fork has additional clearance for mud and bikepacking.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
The FM316 features a T47 85.5mm threaded bottom bracket. This standard provides a larger bearing size for increased durability, easier maintenance with no press-fit creaking, and wider compatibility with modern cranksets.
Our frames accommodate up to 700x50mm or 650Bx2.1" tires. FM316 and FM326 are designed for 50mm clearance.
Yes, we stock standard colors with MOQ of 1 set for private customers.
2 years warranty on frame, 1 year on fork. 130% ISO tested.
