Performance Carbon Frames for Your Next Ride
Compare Mondince carbon fiber road bike frames around your riding position, wheel and tire plan, and the parts you want to use. Start with the endurance-focused FM066 or the aero FM106 and FM126, then check geometry and the supplied cockpit for your size.
Standard frameset price$698 USD
Ultra-light aero road frame crafted from Toray T800+T1000 carbon fiber. Monocoque EPS construction for maximum stiffness-to-weight. Ideal for racing and sprinting.
Standard frameset price$778 USD
Aero road frame with T47 bottom bracket for creak-free performance. Super light carbon layup, optimized for sprinting and flat terrain speed.
Standard frameset price$985 USD
Lightweight endurance road frame with Toray T1100 carbon. Designed for long-distance comfort and responsive handling. Perfect for gran fondos.
Start with the fit you need for your usual routes. Frame weight is useful only when size, finish and included hardware are comparable. If you need a carbon fiber road bicycle frame for a shop or brand build, compare clearance, tube shaping and cockpit options on the model sheets before ordering parts.
An endurance-oriented platform with published clearance up to 35 mm. Compare stack and reach, and confirm the aero seatpost and cockpit supplied with your size.
An aero road option with published clearance up to 40 mm. Check the chosen wheel and tire combination, frame version and cable path rather than treating tire clearance as a complete riding-category specification.
An aero platform with published clearance up to 32 mm and zero-offset/setback seatpost options. Check the exact size, finish and supplied parts when comparing quoted weights.
Published tire limits help narrow the options. Weight and component variants need a size-specific check; the values in different product sections may refer to different finishes or versions.
| Model | Build focus | Published tire limit | Main compatibility checks |
|---|---|---|---|
| FM066 | Endurance road | 700C × 35 mm | T47 85.5 mm BB; aero post; size-specific cockpit |
| FM106 | Aero road | 700C × 40 mm | T47 85.5 mm BB; seatpost version; wheel/tire fit |
| FM126 | Lightweight aero road | 700C × 32 mm | T47 85.5 mm BB; zero-offset/setback post; routing |
Use the model pages to check dimensions and component standards, then compare the total cost of the build.

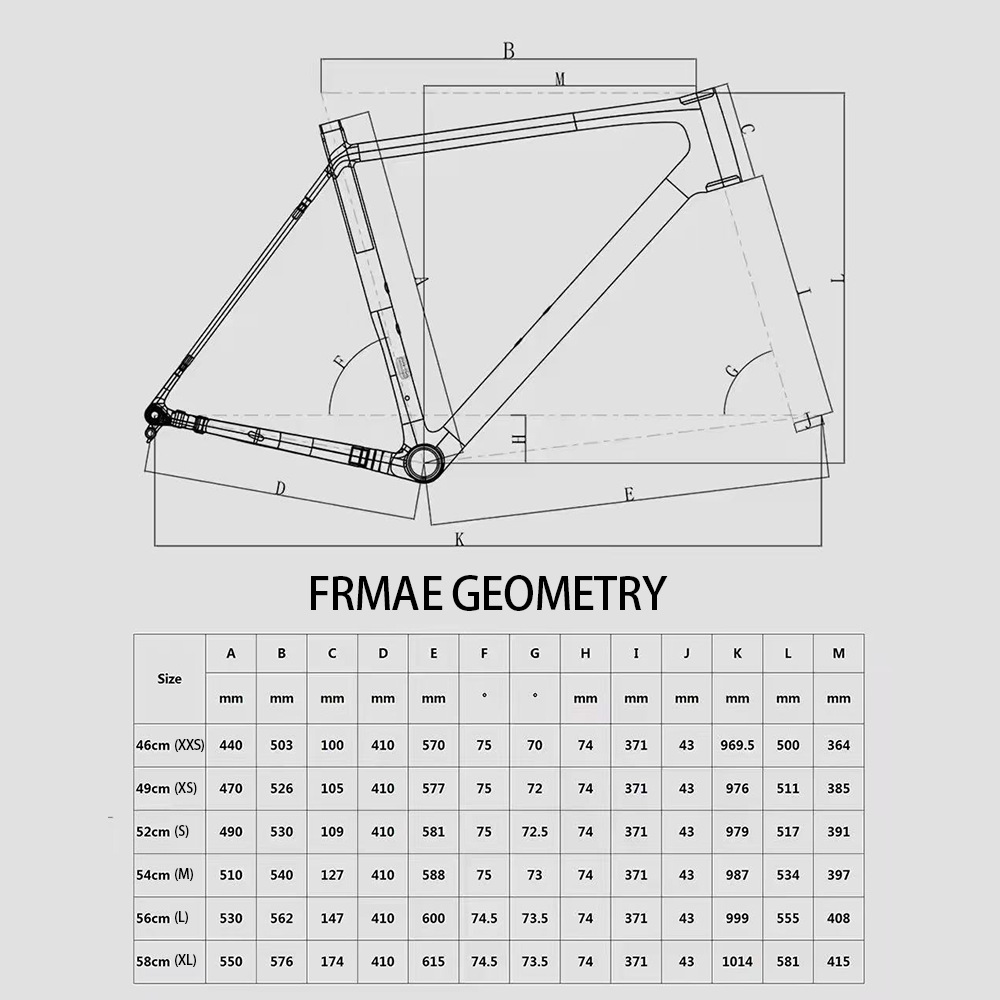

Measure your current saddle and handlebar positions and note stem length and spacers. Compare stack and reach for the actual frame sizes you are considering; a size label alone does not show whether you can reproduce your position.
For an endurance build, consider the routes and time you usually spend on the bike. For an aero build, check that the desired handlebar position can be achieved with the supplied headset and cockpit rather than choosing only by tube shape.
The published tire limits are 35 mm for FM066, 40 mm for FM106 and 32 mm for FM126. Tire width varies with the rim and tire model, so confirm the installed width and remaining clearance for your configuration.

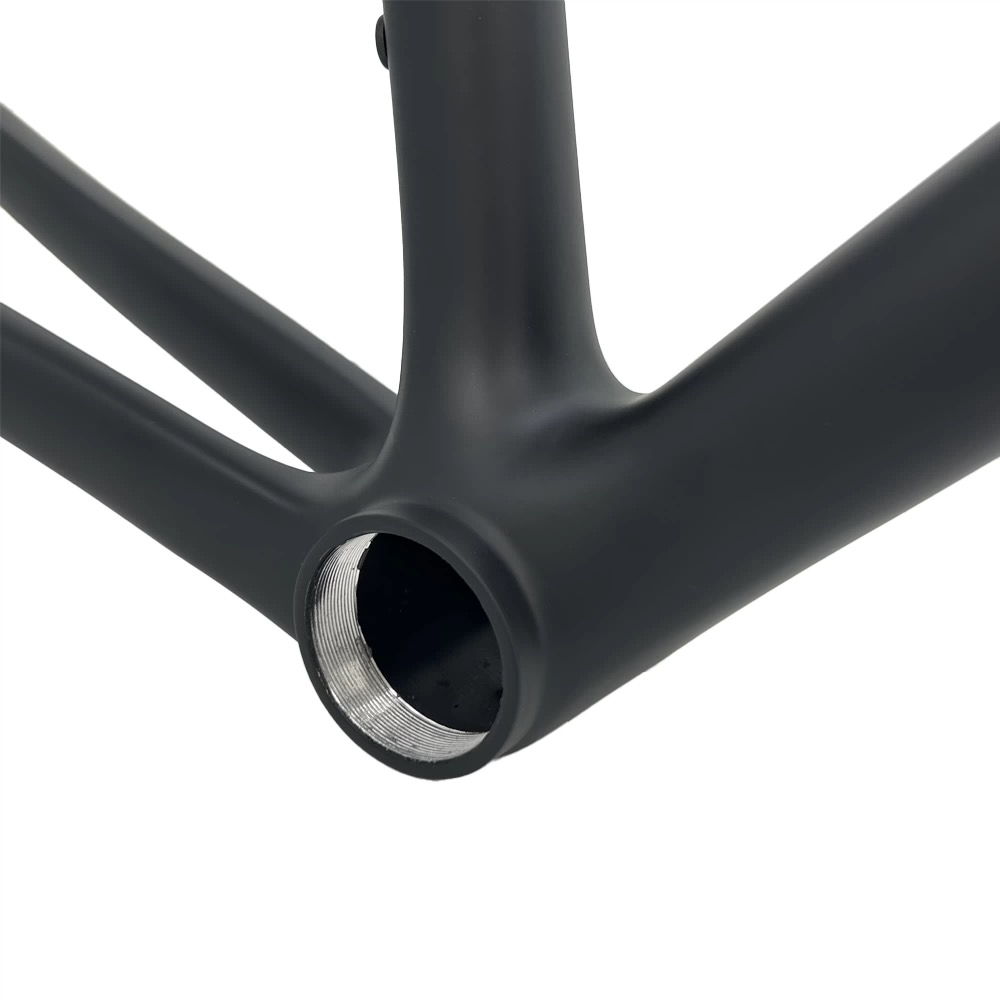

These road models list T47 85.5 mm bottom brackets. Match the actual shell, crank spindle and required BB before ordering. Also confirm front and rear axle threads, rotor sizes and brake adapters; shared axle spacing does not establish every hardware dimension.
The English product sheets include different size and finish conditions, and some models have several published weight references. Ask for the specification of the exact size and finish you are ordering instead of treating the headline number as an M-size guarantee.
A frame-only quote is not the full cost of a bicycle. Confirm the fork, seatpost, headset, spacers and axles supplied, plus any handlebar options. Add the remaining components, assembly, paint and destination costs when comparing builds.
Use stack, reach, standover and the intended stem length. A lower published weight does not establish the right riding position or the lowest complete-bike weight.
Match the headset, spacers, stem, handlebar and hose path. Ask which of these parts are supplied and whether the exact drivetrain you intend to use is supported.
State the model, frame size, paint and delivery destination. Custom geometry or brand development is a separate discussion from ordering an existing frameset.
Start with FM066 and compare its size-specific geometry with your current riding position. FM106 and FM126 offer aero-oriented alternatives; choose using fit and component requirements rather than a model label alone.
No. Tire clearance is only one condition. Check the intended use, wheel and tire combination, fork, brakes and geometry for the route you plan to ride.
Check the exact headset, stem, hose routing, seatpost shape and saddle clamp. These frames use model-specific aero-post and cockpit arrangements; photographs alone cannot establish compatibility.
Include the model, frame size, desired position, wheel and drivetrain part numbers, paint and delivery destination. State whether you need one frameset or a brand production project.
Review weight, stiffness, geometry, tire clearance and service standards before shortlisting a platform.
Understand endurance geometry, comfort and long-distance road frame selection.
Use height, inseam, stack and reach to choose the right road frame size.
Match drivetrain decisions with a compatible road bike frame platform.
Tell Mondince your target rider, geometry, paint and quantity. We can recommend the right road frame platform and quote sample or bulk production.
