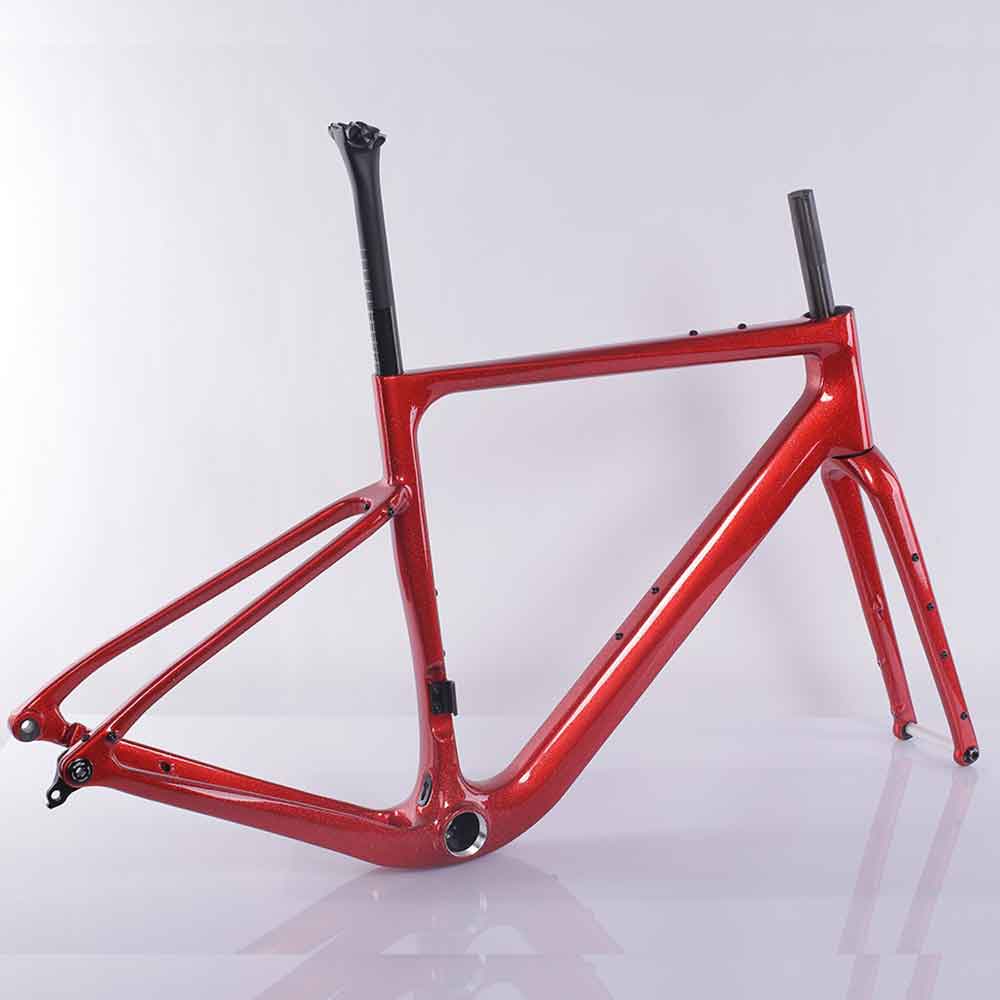

New Design Flip Chip Offset Max 50mm Tire T47 Carbon Gravel Bike Frame FM306

New Design Flip Chip Offset Max 50mm Tire T47 Carbon Gravel Bike Frame FM306

0 reviews
Factory Direct Price Contact For Best Price
The Mondince FM306 carbon gravel bike frame delivers superior performance, comfort, and versatility for modern gravel riding, bikepacking, and all‑road adventure. Constructed from high‑strength Toray T800 + T1000 carbon fiber, this frameset combines lightweight efficiency (1010g±30g XS frame, 420g±15g fork) with outstanding rigidity and vibration absorption for long‑ride comfort.

Featuring an innovative Flip Chip fork with adjustable 45/50mm rake, the FM306 lets you fine‑tune handling for stable cruising or responsive racing. Built with a T47 85.5mm bottom bracket and UDH universal derailleur hanger, it ensures wide drivetrain compatibility, reliable shifting, and easy maintenance. The frame supports 12×142mm rear and 12×100mm front thru‑axles, flat‑mount disc brakes (160/180mm rotor compatible), and IS52/IS52 headset for precise steering control.

With generous tire clearance up to 700C×50mm / 650B×2.1", this gravel frame adapts to rough gravel, dirt roads, and pavement. Additional practical features include fender mounts, 27.2mm seatpost, internal cable routing, and a durable finish ideal for daily use and expedition riding. Every frame is 1.3× ISO safety tested and backed by a 2‑year warranty.

As a professional Chinese carbon gravel bike frame manufacturer, Mondince provides OEM & ODM services, custom Pantone/YS painting, low MOQ, and monthly production capacity of 3000 sets. The FM306 is the perfect choice for riders seeking a comfortable, adjustable, high‑performance gravel frameset.
Weight 1010g
Material Toray Grade T800+T1000
Tire Clearance 50mm
Test Standard 1.3 Times Tested

Color Options

Custom Colors Available - Provide YS/Pantone Code

Size Size Guide

XS (49cm)
S (52cm)
M (54cm)
L (56cm)
XL (58cm)
XXL (61cm)
Inquire Now
2-Year Warranty
Free Shipping Worldwide
5-10 Days Delivery
Secure Payment
Payment Methods:

Frame Detail

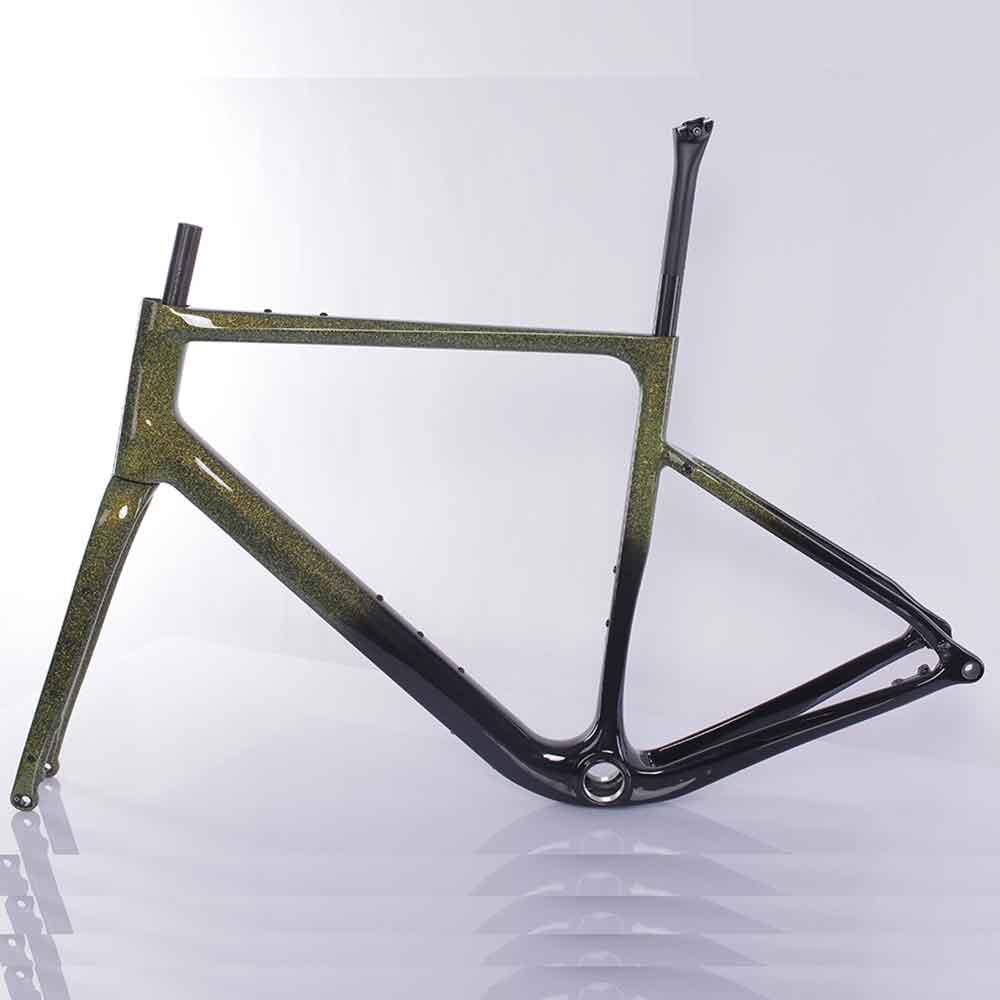

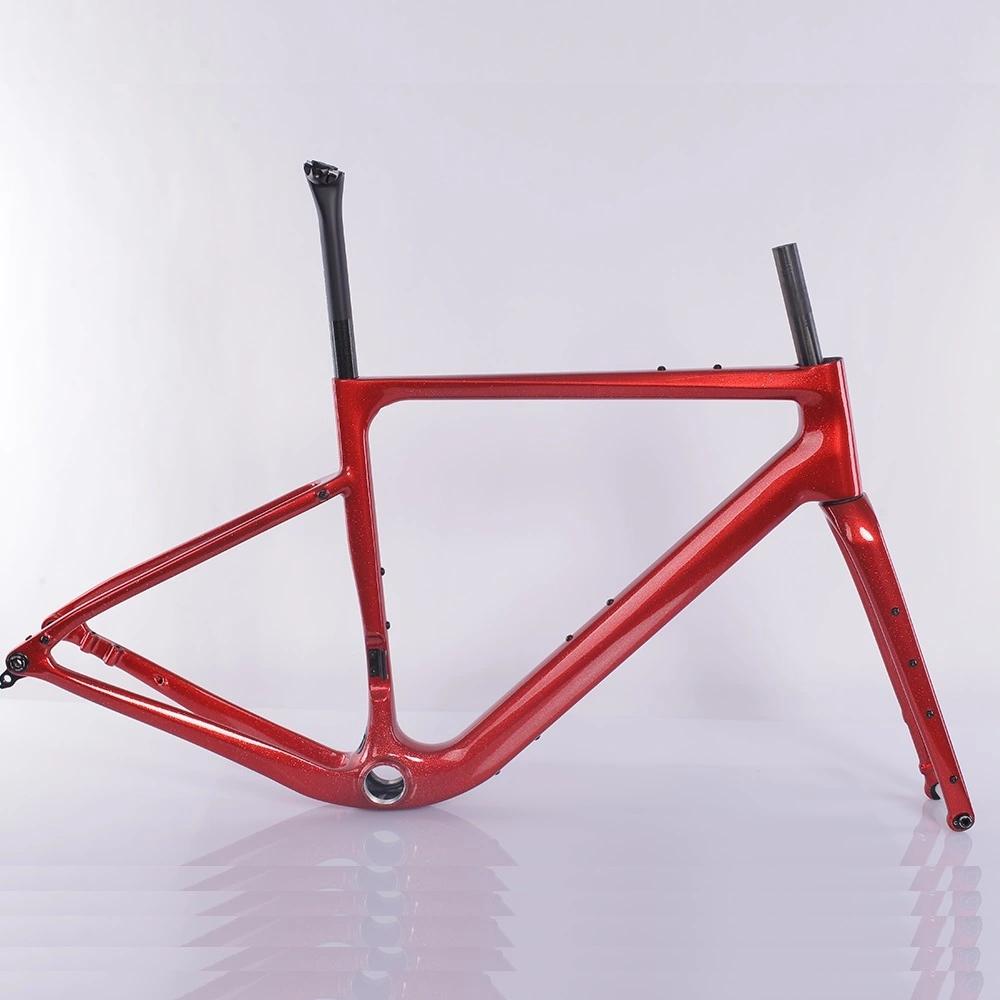

Comfortable Gravel Bike Frame
Comfortable Gravel Bike Frame

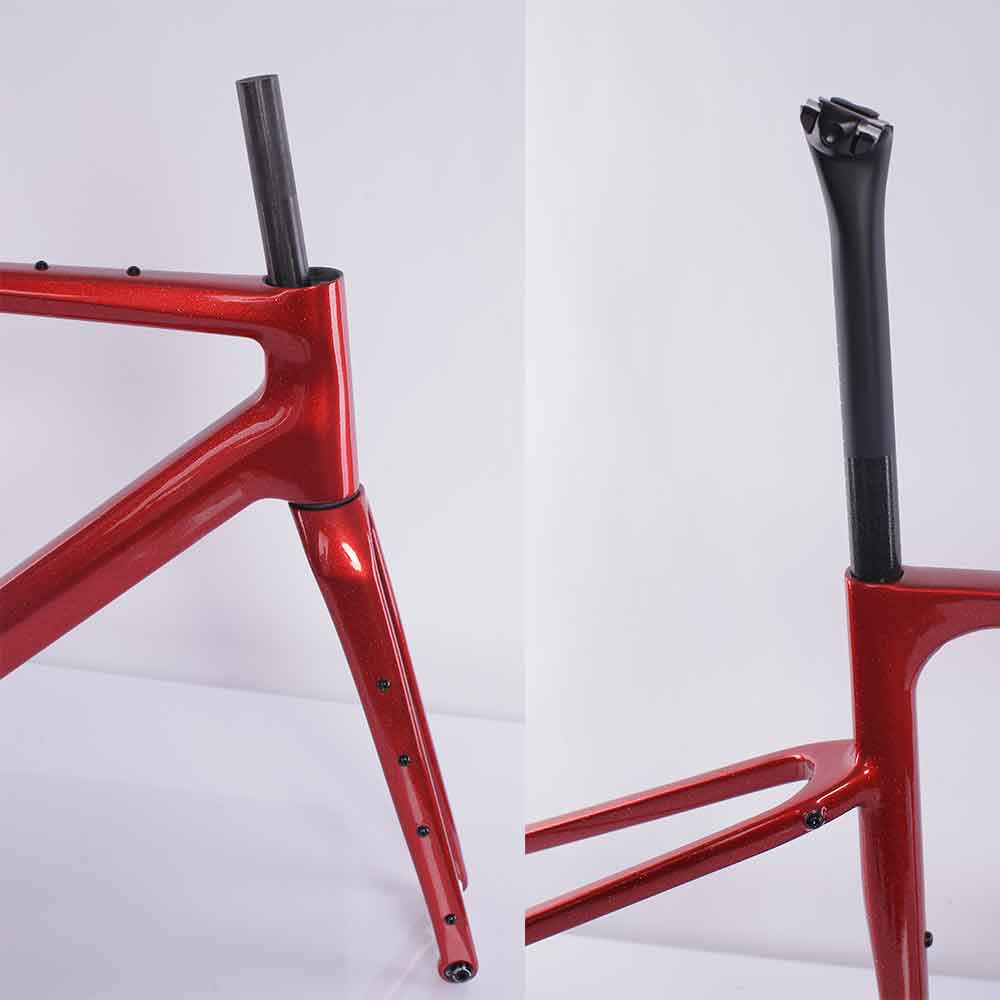

27.2mm Seatpost
27.2mm Seatpost

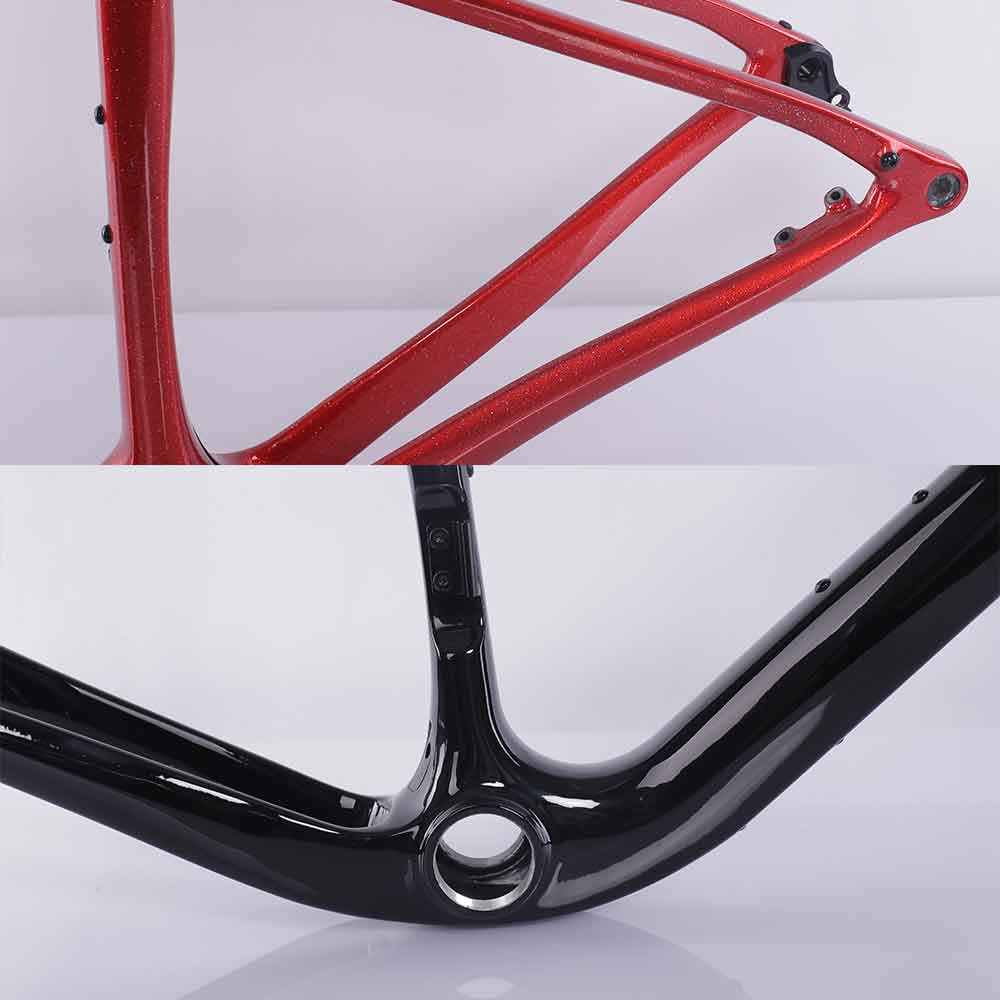

UDH Hanger T47 Bracket
UDH Hanger T47 Bracket

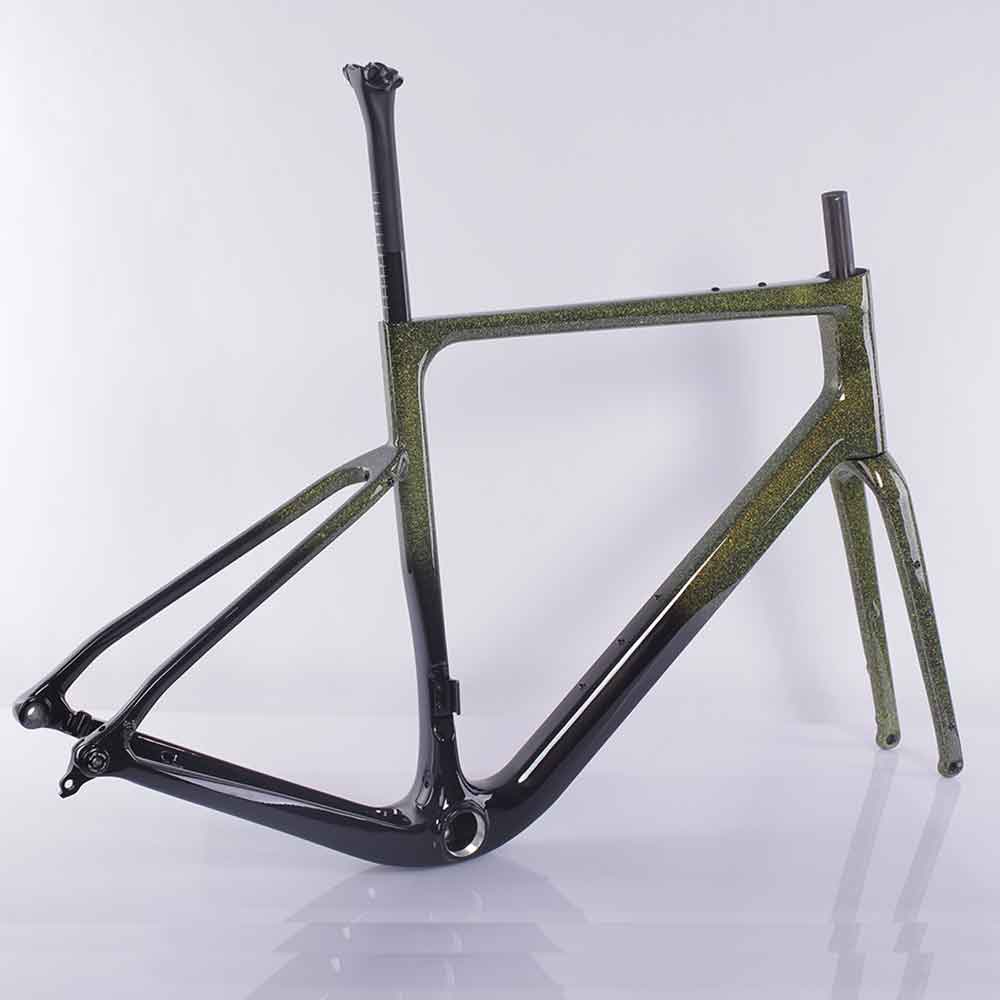

Flip Chip Fork
Flip Chip Fork

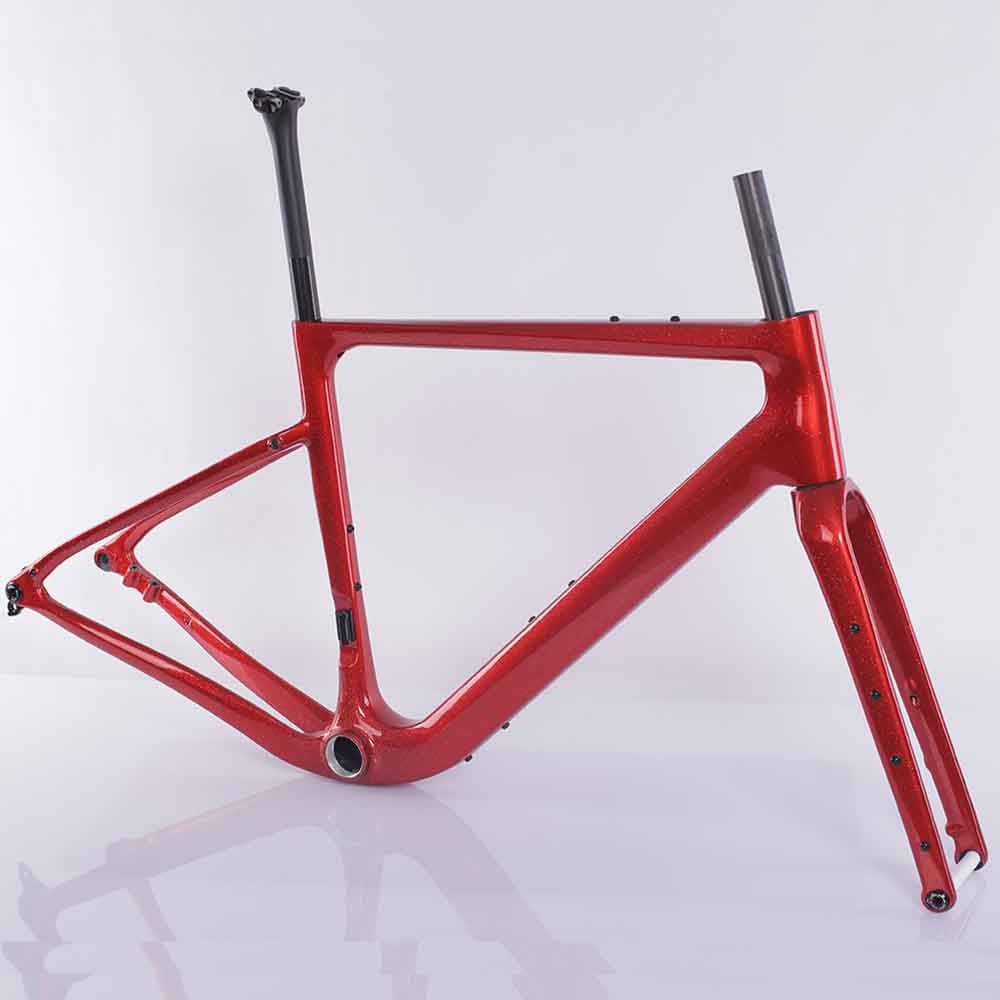

50mm Max Tire
50mm Max Tire
Specification Details
Material 100% Toray Grade T800/T1000 Carbon Fiber
Frame Weight 1010-1140g for Raw Finished(XS-XL);
Fork Weight 420g ± 15g (Uncut); Tapered Crown; 28.6mm Steer Tube
Tire Clearance 700c x 50mm / 650B x 2.1"; 5mm Tire Clearance
Bottom Bracket T47 85.5mm
Front Derailleur 1*12/2*12 Shimano Or Sram; Cover Provided For 1X
Seatpost 27.2mm Round, 7*7mm/7*9mm Compatiable
Hanger UDH (Universal Derailleur Hanger), 1.0mm Pitch
Brake Type Disc Brake (Flat Mount)
Rotor Size (Max) 160/180mm (Front), 160/180mm (Rear)
Axle Standard AL7075 Anodized Black, 12x125mm*1.0P (Front) / 12x174mm*1.0P (Rear)
Headtube 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD
Bearing Size 52mm OD, 40mm ID Upper And Lower; 8mm Height Upper, 7mm Height Lower
Frame Sizes XS, S, M, L, XL
Pacakges Included Frame, Fork, Seatpost, Axles, Headset And Bag
Key Features High Stiffness, Fully Intenal Cable, Relaxed Geometry
Flip Chip Comfortable Carbon Fiber Gravel Bike Frame

Flip Chip Comfortable Carbon Fiber Gravel Bike Frame

Factory Capacity

Lead Time: 3000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 20 sets
Sample: Provided

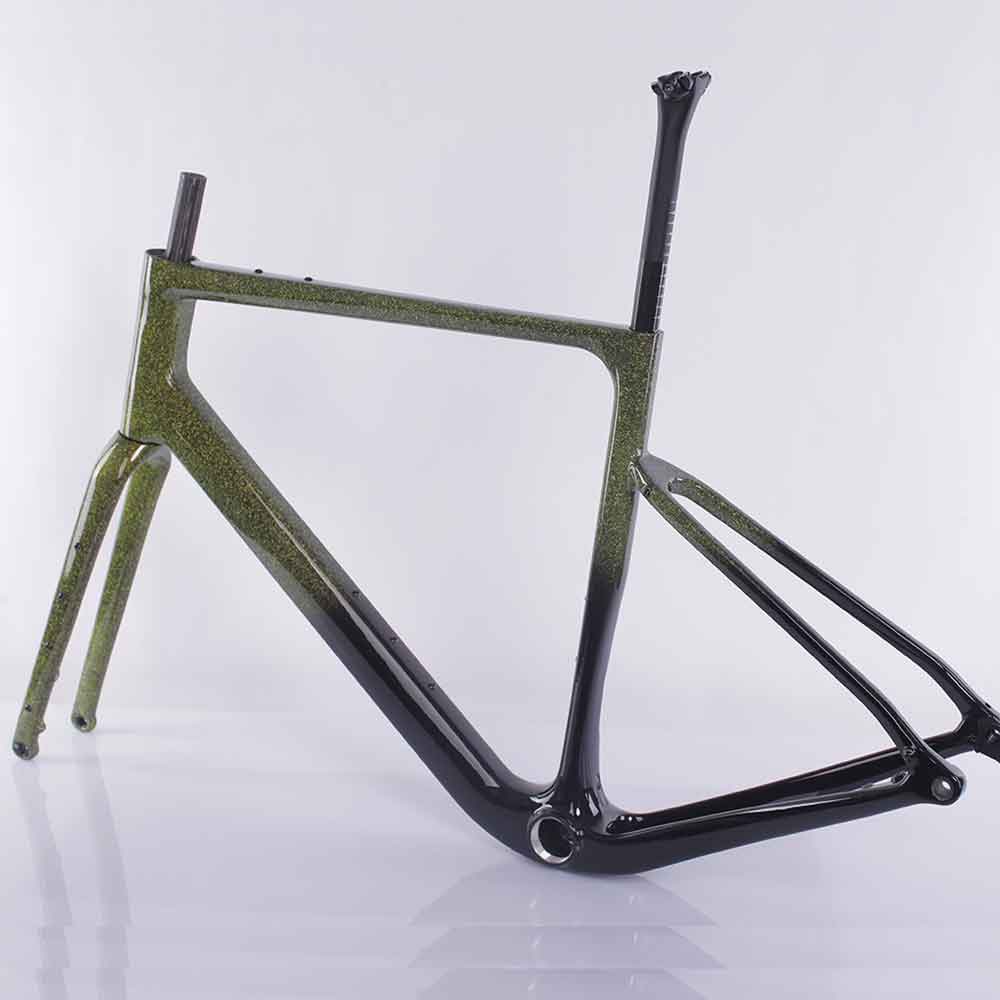

50mm Tire T47 Carbon Gravel Bike Frame

50mm Tire T47 Carbon Gravel Bike Frame

Frame Data Sheet

Material: 100% Toray T1000 Carbon Fiber

Carbon Weave: UD/3K, UD Will Be Recommend

Frame Weight: 1010g+-30g(XS, Raw Finished)

Fork Weight: 420g+-15g(UD Matt); Flip Chip

Frame: 12*142mm , UDH Hanger

Fork: 12*100mm, 45/50mm Rake

Rotor:160/180mm Front; 160/180mm Rear;

Max Tire: 650B*2.1''/700C*50mm

Size: XS/S/M/L/XL

Seatpost: 27.2mm

Key Features:

  • FLIP CHIP FORK HANGER 45/50MM
  • T47 BRACKET 85.5MM
  • FRAME FORK FLAT MOUNT 140/160MM
  • HEADTUBE: IS52/52
  • 395MM A-C FORK LENGTH
  • FENDER MOUNT
  • UDH HANGER

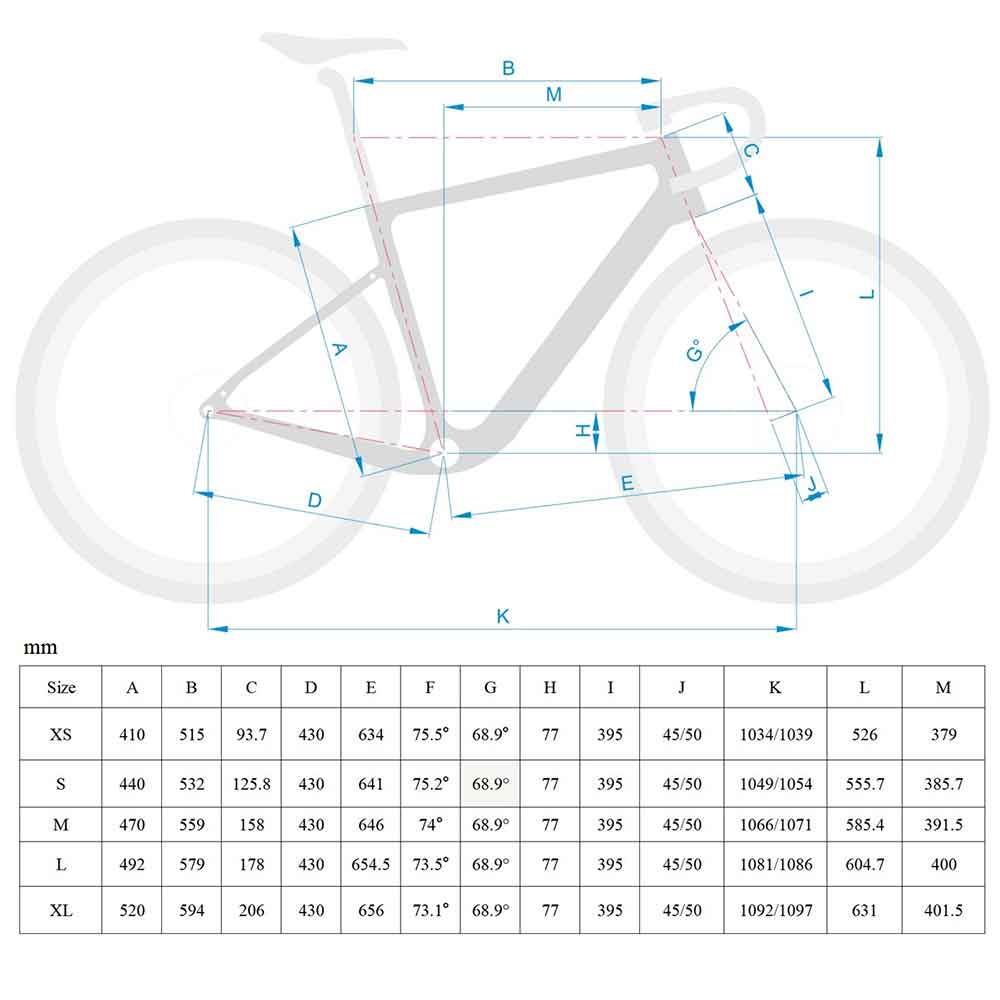

FM306 Gravel Bike Frame Geometry

ZE A
Seat Tube Length		 B
Top Tube Length		 C
Headtube Length		 D
Chainstay Length		 E
Front Center		 F
Seat Tube Angle		 G
Head Tube Angle		 H
BB Drop		 I
Fork Length		 J
Fork Rake/Offset		 K
Wheelbase		 L
Stack		 M
Reach
XS 410 515 93.7 430 526/531 73.5° 68.9° 77 395 45/50 1034/1039 526 379
S 440 532 125.8  430 555.7/600.7 75.2° 68.9° 77 395 45/50 1049/1054 555.7 385.7
M 470 559 158  430 585.4/590.4 74° 68.9°  77 395 45/50 1066/1071 585.4 391.5
L 492 579 178  430 604.7/609.7 73.5° 68.9°  77 395 45/50 1081/1086 604.7 400
XL 520 594 206  430 631/636 73.1° 68.9°  77 395 45/50 1092/1097 631 401.5

Customer Reviews

Write a Review
0 out of 5
☆☆☆☆☆
Based on 0 verified reviews
5 Star
0%
4 Star
0%
3 Star
0%
2 Star
0%
1 Star
0%
Loading reviews...

Frequently Asked Questions

For small orders, we accept PayPal, bank transfer, or Western Union.

For bulk orders, a 30% deposit by T/T (bank transfer) is required.

Lead time depends on the complexity of the paint design and frame production.

Normally, production takes 45 days plus an additional 15 days for painting.

For urgent orders, we can prioritize your production schedule, so lead time is negotiable.

All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.

  1. For our standard-weight frames, we use Toray T700 and T800 carbon fiber.
  2. For customers looking for lightweight frames, we use T800 and T1000 carbon fiber.

All frames are tested to 1.3 times the ISO 4210 standard. We can also provide EN certification upon customer request.
  1. We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
  2. If no custom painting is requested, we can offer 3K carbon weave instead.

The carbon weave pattern is based on your requirements, and we will produce accordingly.
For OEM/ODM brands, we can provide free samples for quality inspection first. You will only need to cover the shipping cost.

If you would simply like to verify our product quality, you will be required to pay 50% of the frame cost plus shipping fees.

Feel free to contact us for sample evaluation. We look forward to cooperating with you.
Certainly, we can provide 3D drawings for you. However, you will need to provide us with the tube shape and geometric specifications.

Additionally, we can produce a 3D-printed frame prototype prior to making the steel mold.

Yes, as an OEM manufacturer, we offer full custom geometry and layup services for brand partners. The MOQ for custom frames is 50 sets. Additional bottle mounts or custom rack mounts can be discussed during the design phase.

Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.

All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.

Technology Highlights

Toray Grade Carbon

Premium Japanese carbon fiber

1.3 Times ISO Tested

Exceeds safety standards by 1.3 Times

Custom Painting

Any RAL/Pantone color

Custom Geometry

Tailored fit available
