Max 3.0 Inch Tire BB92 T47 148MM Boost Full Carbon Hardtail MTB Bike Frame FM218
Factory Direct Price
Contact For Best Price
| Specification | Details |
|---|---|
| Material | 100% Toray Grade T800+T1000 Carbon Fiber |
| Frame Weight | 1050g for Raw Finished(M); |
| Tire Clearance | 29*2.4''/27.5*3.0'' |
| Bottom Bracket | BB92/T47 |
| Seatpost | 31.6MM |
| Hanger | UDH (Universal Derailleur Hanger), 1.0mm Pitch |
| Brake Type | Disc Brake (Flat Mount) |
| Rotor Size (Max) | 160/180mm |
| Headtube | 1-1/2" Upper and Lower (Integrated); 52mm ID, 56mm OD |
| Bearing Size | 52mm OD, 40mm ID Upper And Lower; 7mm Height Upper, 7.5mm Height Lower |
| Frame Sizes | S, M, L, XL |
| Pacakges Included | Frame, Axles, Headset |
| Key Features | Super Light Version, BB92/T47 Bracket, 12*148mm |
🏢 Available for OEM / Private Label Orders
This frame can be customized with your brand logo, colors, and geometry. Low MOQ from 1 pcs | EN Certified | Toray Carbon
Request OEM Quote → Contact Us
Weight
1050g
Material
Toray Grade T800+T1000
Tire Clearance
27.5*3.0''
Test Standard
1.3 Times Tested
2-Year Warranty
Worldwide Shipping Available
15-18 Days For Custom Painting
Secure Payment
Payment Methods:

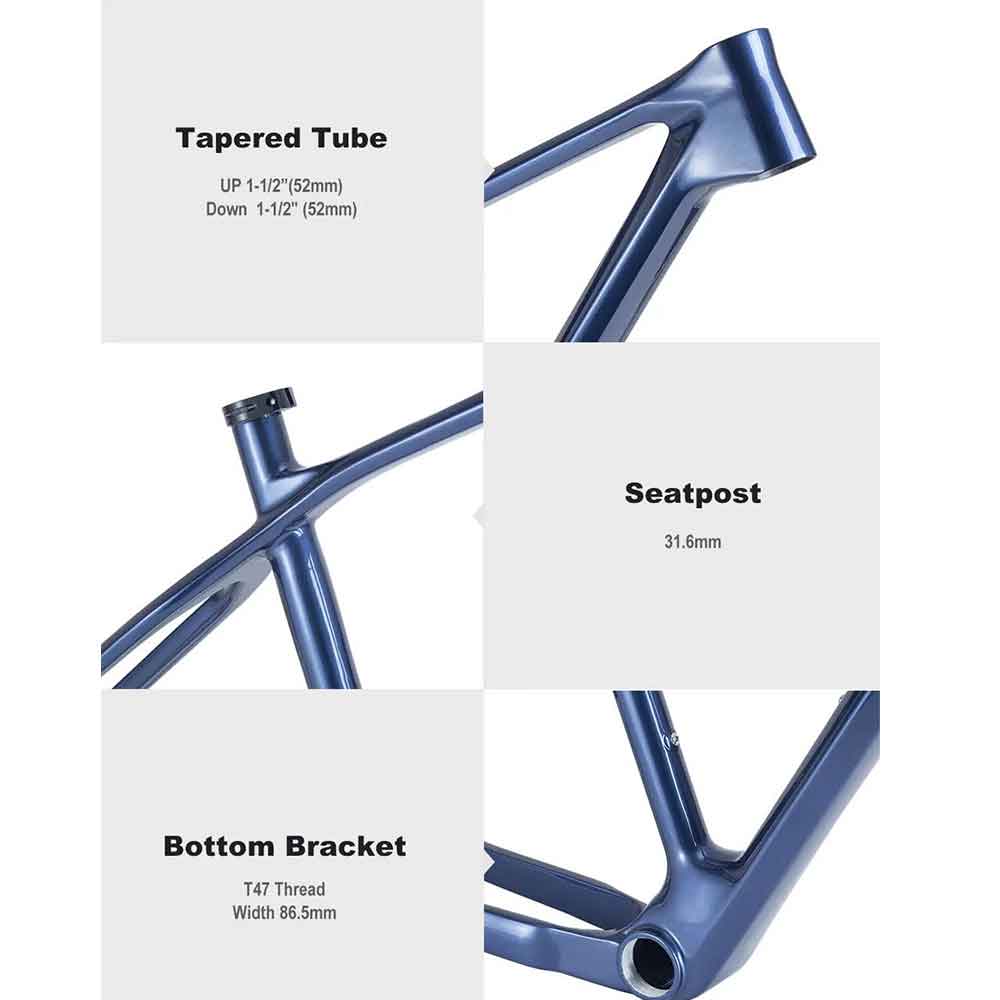

Frame Detail
Post Mount Disc Brake

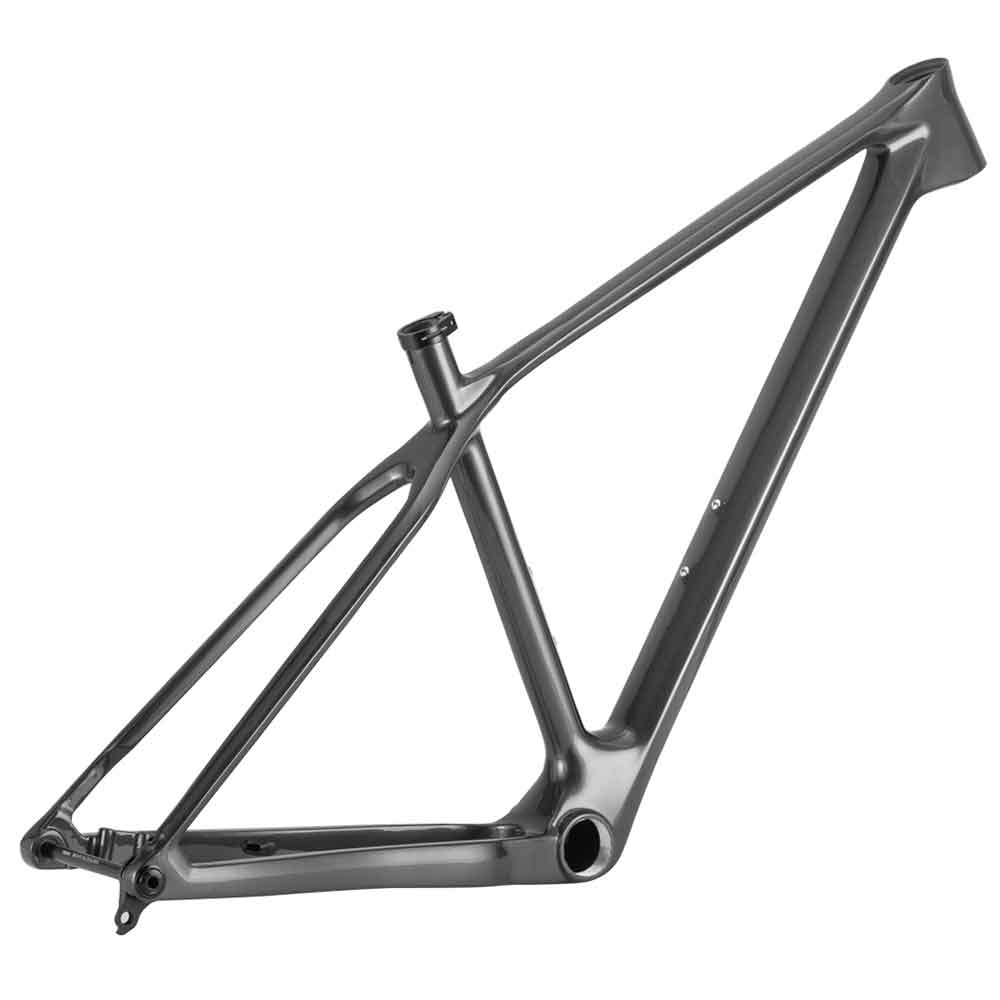

148mm Rear Spacing

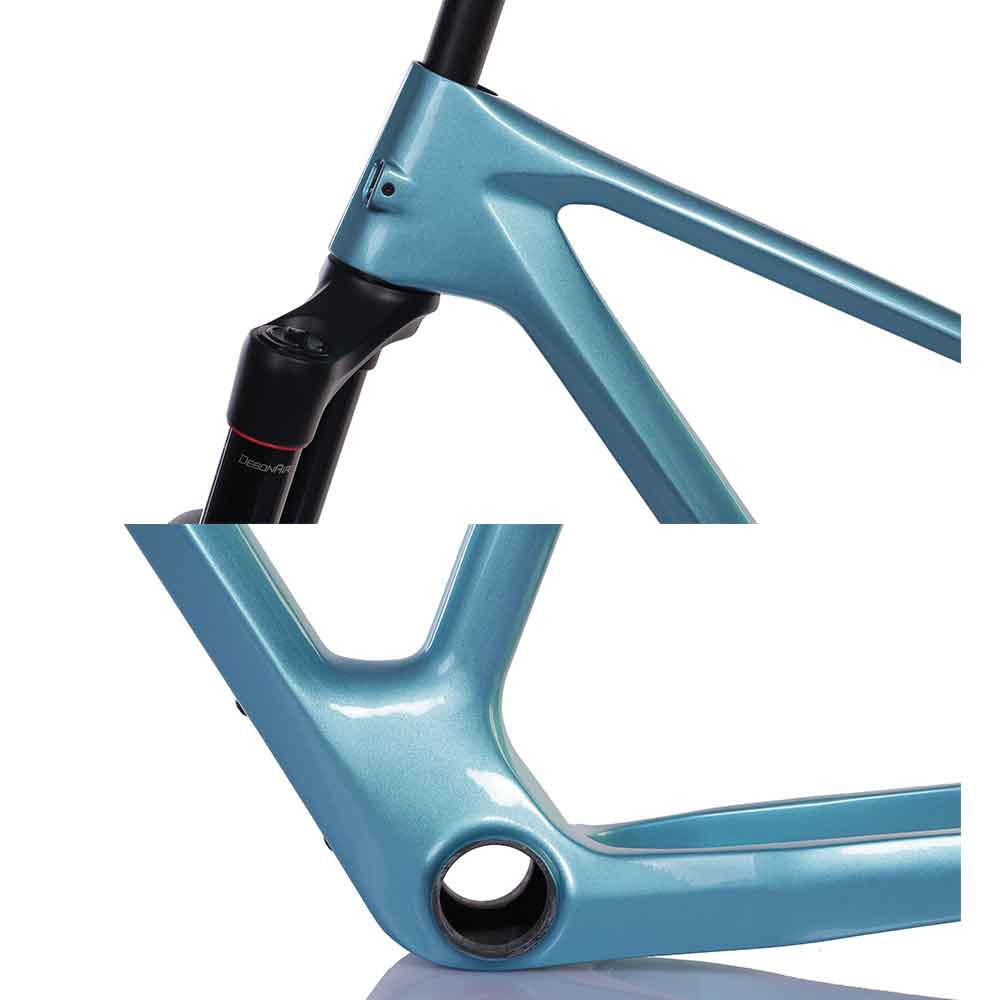

31.6mm Seatpost

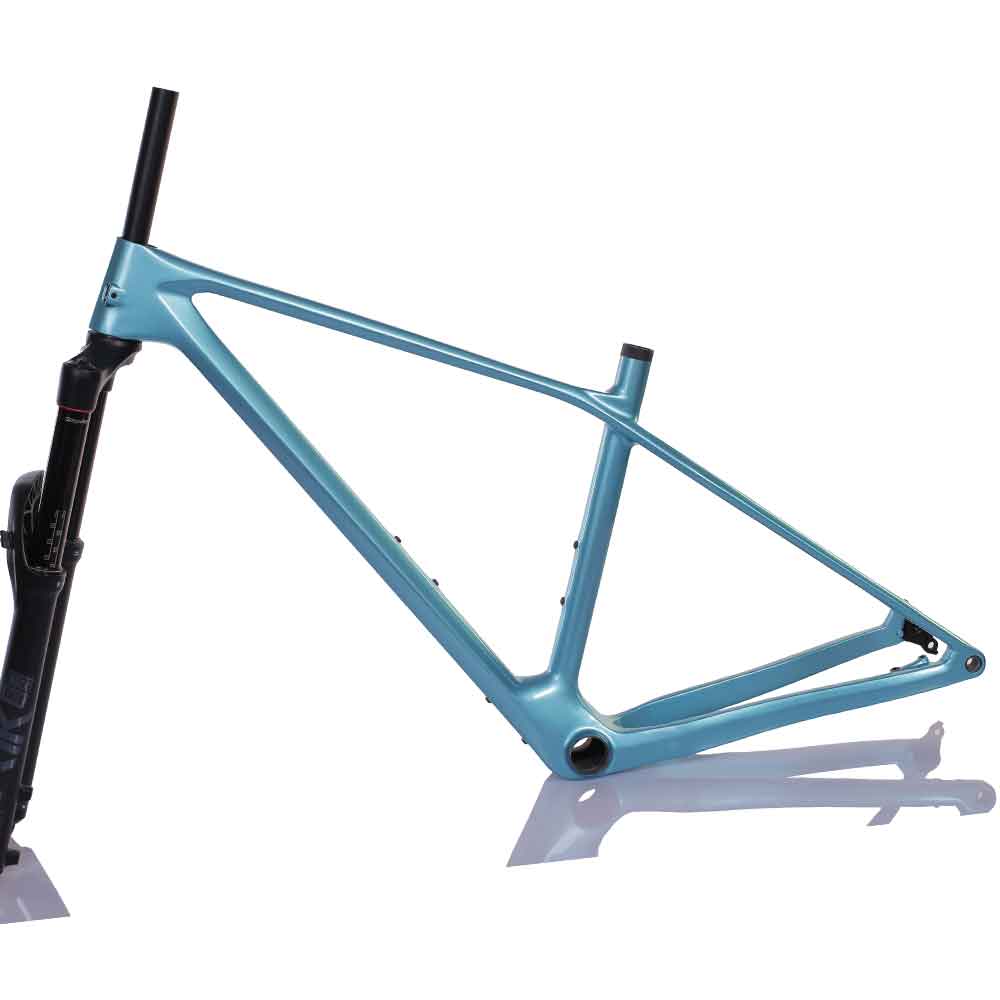

UDH Hanger

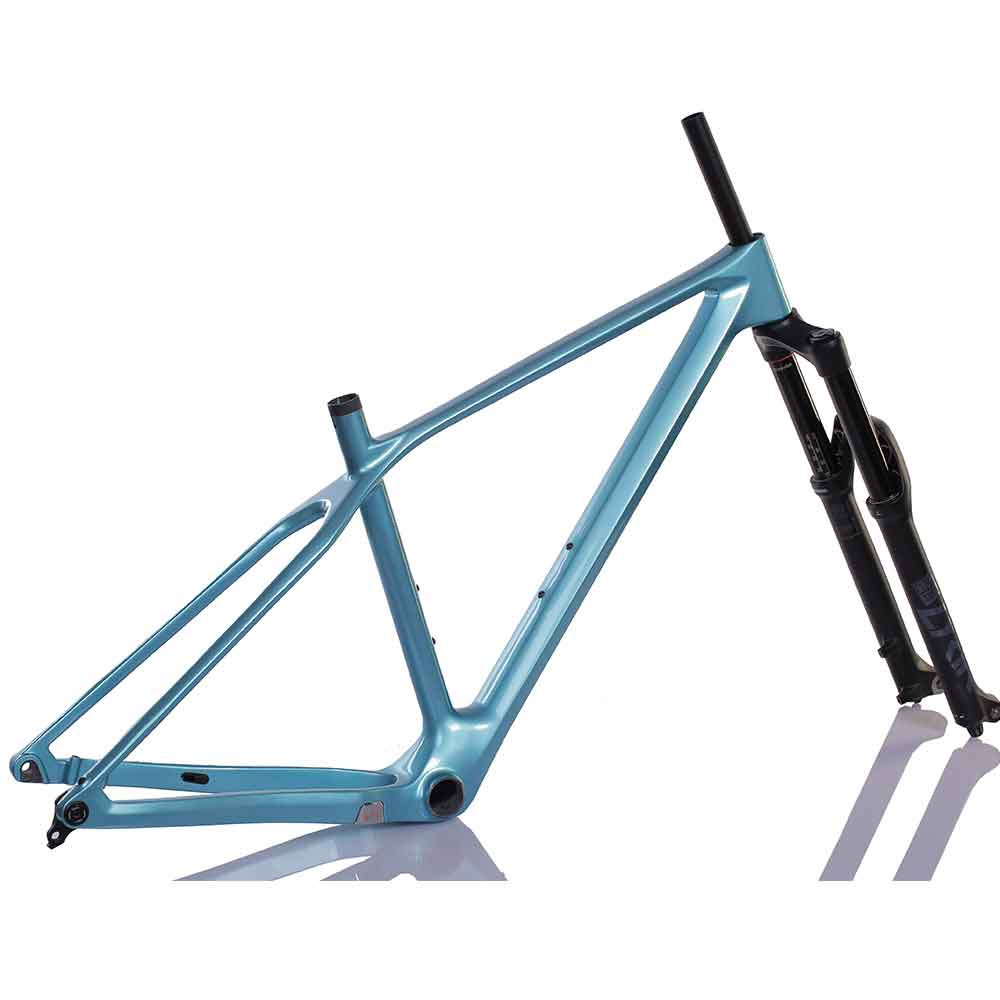

T47 Bracket
No specifications available for this product.
Carbon Hardtail MTB Bike Frame
Factory Capacity
Lead Time: 5000 Sets Per Month
Customized Painting: Accepted
OEM Service: Accepted
MOQ: 30 sets
Sample: Provided

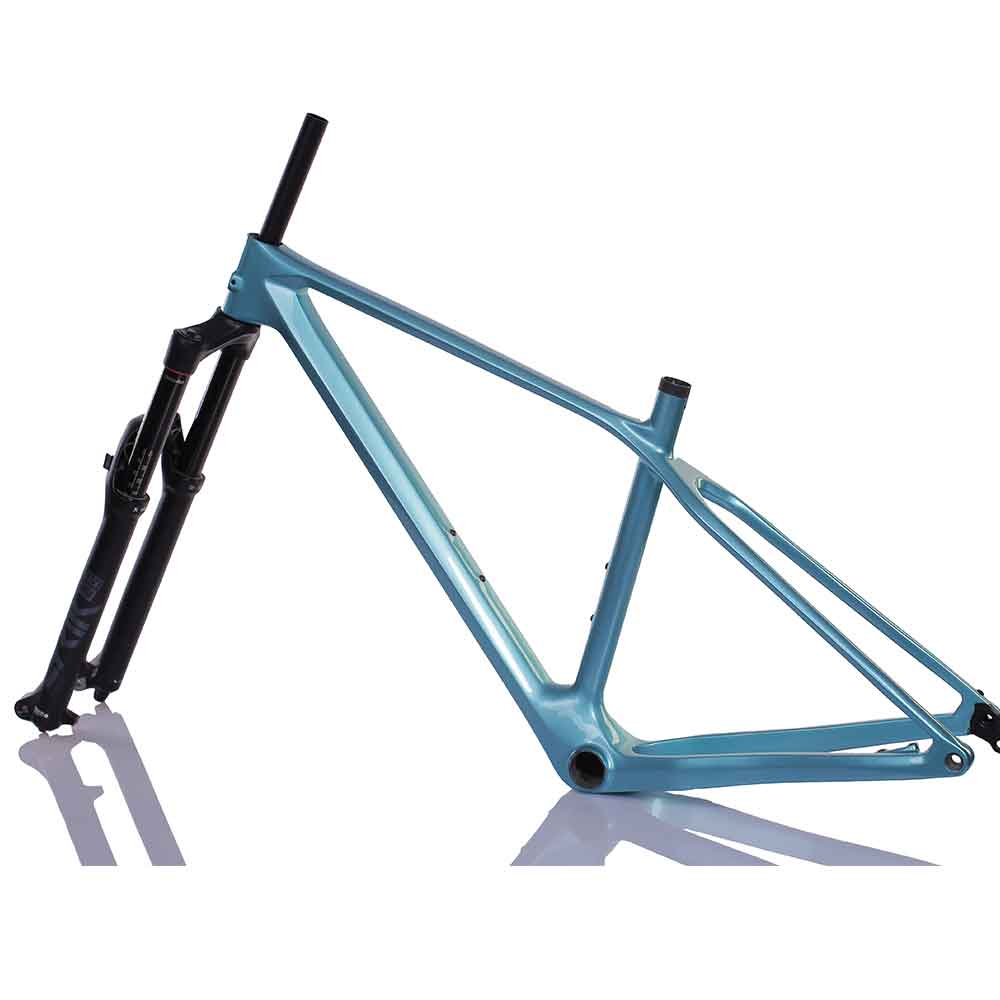

148MM Boost Full Carbon Hardtail MTB Bike Frame

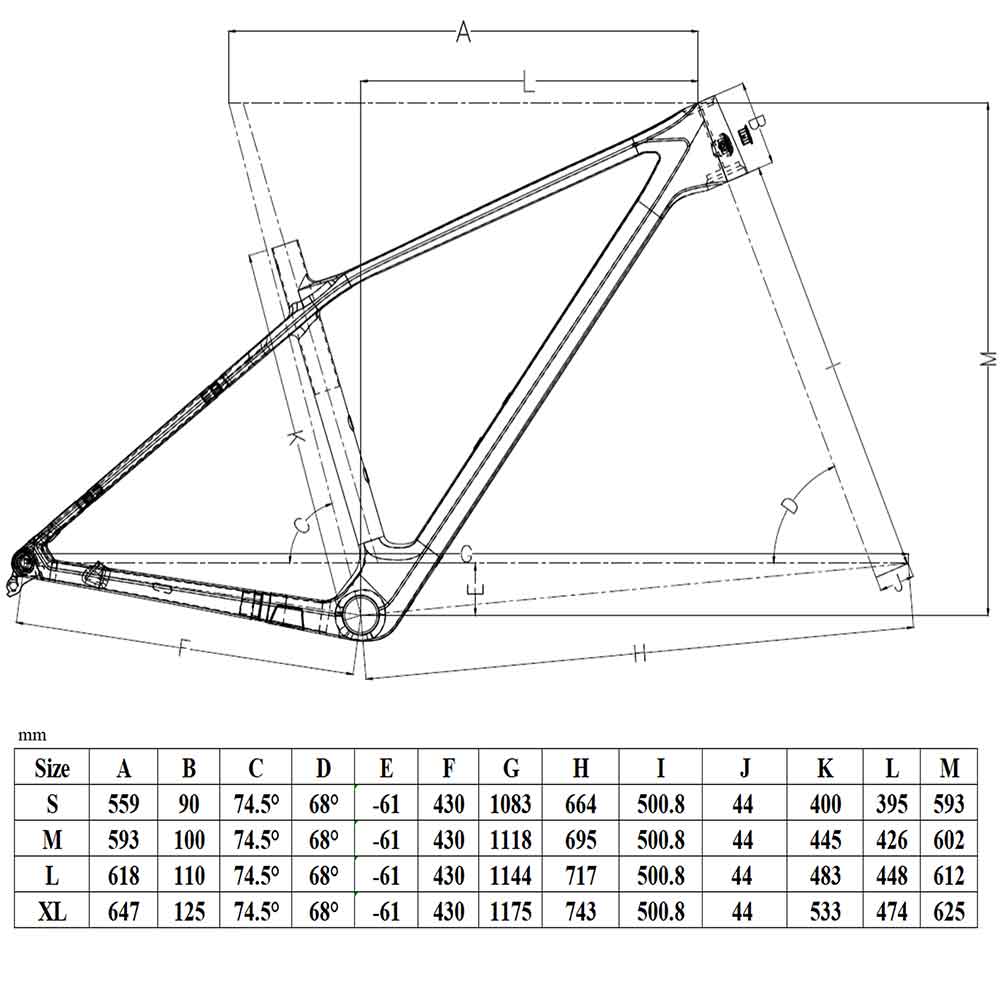

Frame Data Sheet
Material: 100% Toray T800+T1000 Carbon Fiber
Carbon Weave: UD/3K, UD Will Be Recommend
Color: All Colors Available
Size：S/M/L/XL
Frame Weight: 1050/+-30g (S)
Tire Size : 29*2.4''/27.5*3.0''
Rear Spacing : 12*148mm
Seatpost : 31.6mm
BB:T47/BB92
Headtube: Tapered Or 1-1/2''
Key Features:
- SEMI/FULLY INTERNAL CABLE ROUTING
- BB92/T47
- FLAT/POST MOUNT 160/180MM DISC BRAKE
- HEADTUBE: 1-1/8''(UP)1-/2" ( DOWN); 1-1/2''
- MAX TIRE 27.5*3.0/29*2.4''
Customer Reviews
Write a ReviewNo reviews yet. Be the first to review this product!
★
★
★
★
★
4.7/5 — Verified B2B Buyers
"Better tolerance than expected" — Germany · "Super fast shipping" — Canada
See More Reviews & Request a Quote →Frequently Asked Questions
For small orders, we accept PayPal, bank transfer, or Western Union.
For bulk orders, a 30% deposit by T/T (bank transfer) is required.
Lead time depends on the complexity of the paint design and frame production.
Normally, production takes 45 days plus an additional 15 days for painting.
For urgent orders, we can prioritize your production schedule, so lead time is negotiable.
All products shipped to customers undergo stiffness testing and functional inspection, and are carefully packed before delivery.
- Our series frames use a Toray T800 and T1000 blend – T800 in impact-exposed zones, T1000 where stiffness per gram decides the result.
- FM296, FM306 and FM366 (gravel) are built from T1000, and our lightest road platform FM066 adds T1100.
- For OEM projects we can also build with T700, where toughness and unit cost matter more than stiffness per gram.
All frames are tested to 1.3 times the ISO 4210 standard. We can also provide EN certification upon customer request.
- We normally use UD carbon weave, as most customers prefer to apply their own custom paint.
- If no custom painting is requested, we can offer 3K carbon weave instead.
The carbon weave pattern is based on your requirements, and we will produce accordingly.
For OEM/ODM brands, we can provide free samples for quality inspection first. You will only need to cover the shipping cost.
If you would simply like to verify our product quality, you will be required to pay 50% of the frame cost plus shipping fees.
Feel free to contact us for sample evaluation. We look forward to cooperating with you.
Certainly, we can provide 3D drawings for you. However, you will need to provide us with the tube shape and geometric specifications.
Additionally, we can produce a 3D-printed frame prototype prior to making the steel mold.
Yes! We offer full custom painting services. Provide your YS or Pantone color code. Custom paint MOQ is 30 sets. We can also apply your brand logos and graphics.
All Mondince frames come with a 2-year warranty against manufacturing defects. We also offer after-sales support for any technical questions. Our frames are tested to 130% of ISO 4210 standards.
Technology Highlights
Toray Grade Carbon
Premium Japanese carbon fiber
1.3 Times ISO Tested
Exceeds safety standards by 1.3 Times
Custom Painting
Any RAL/Pantone color
OEM Custom Geometry
Tailored frame molds for bulk orders
